(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

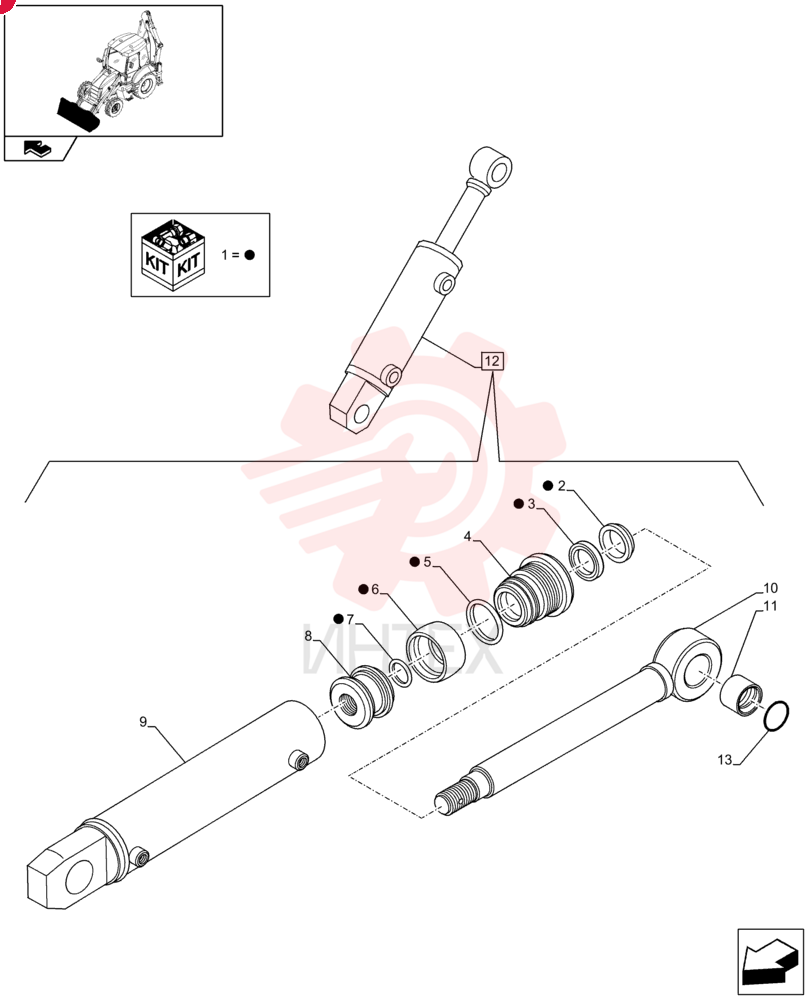

SEAL KIT 87573868

SEAL KIT 87573868

SEAL KIT 87573868

1 87573868

  • 87573868 - SEAL KIT

2 87574080

  • 87574080 - SCRAPER

3 87574092

  • 87574092 - SEAL

4 87574524

  • 87574524 - BOTTOM

5 87574099

  • 87574099 - SEAL

6 87574097

  • 87574097 - SEAL

7 87574098

  • 87574098 - O-RING

8 85820054

  • 85820054 - PISTON

9 NSS

  • NSS - NOT SOLD SEPARAT

10 47395976

  • 47395976 - ROD

11 47395939

  • 47395939 - BALL JOINT

12 47714749

  • 47714749 - HYDRAULIC CYLINDER

13 47395991

  • 47395991 - SEAL
  • 73.02mm ID x 3.53mm Thk
