(B90B) - BACKHOE LOADER TIER 3 (2008)
/

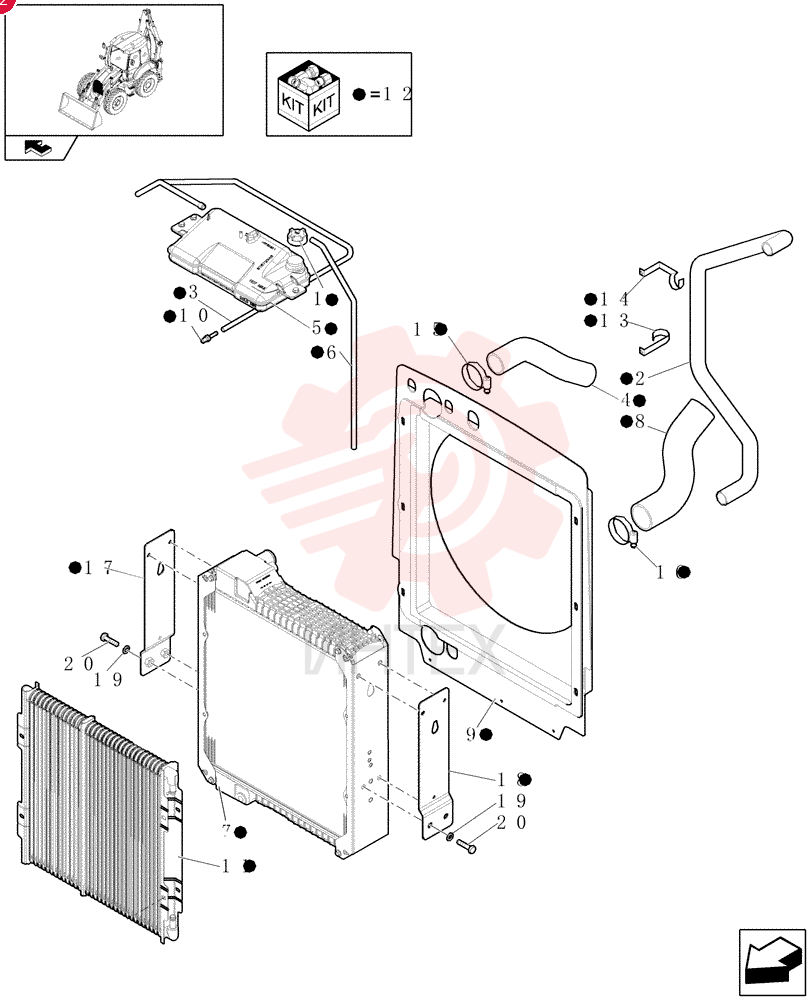

CAP 87673335 (2)

CAP 87673335 (2)

CAP 87673335 (2)

1 87673335

  • 87673335 - CAP

2 87673347

  • 87673347 - HOSE

3 87680813

  • 87680813 - HOSE
  • 6.5mm ID x 665mm L
  • SAE 20R3

4 87413237

  • 87413237 - RADIATOR HOSE
  • 45.00 mm ID x 289.50 mm
  • SAE J20R4

5 87673346

  • 87673346 - RESERVOIR
  • COOLANT E

6 87675597

  • 87675597 - HOSE

7 87673341

  • 87673341 - RADIATOR

8 87407272

  • 87407272 - HOSE
  • 57.00 mm ID x 217.70 mm
  • SAE J20
  • SAE J20R4 CLASS C

9 87683149

  • 87683149 - SHROUD

10 87016893

  • 87016893 - FITTING
  • 1/4" Hose X 1/4" NPTF Beaded

11 87410099

  • 87410099 - OIL COOLER

12 87670083

  • 87670083 - RADIATOR

13 87494215

  • 87494215 - HOSE CLIP

14 87494217

  • 87494217 - HOSE CLIP

15 47050733

  • 47050733 - HOSE CLAMP
  • 39.62mm - 63.5mm

16 47050734

  • 47050734 - HOSE CLAMP

17 87673338

  • 87673338 - BRACKET

18 87673339

  • 87673339 - BRACKET

19 12646901

  • 12646901 - WASHER
  • 12.2mm ID x 8mm OD x 3mm Thk

20 11112421

  • 11112421 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 8.8
