New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

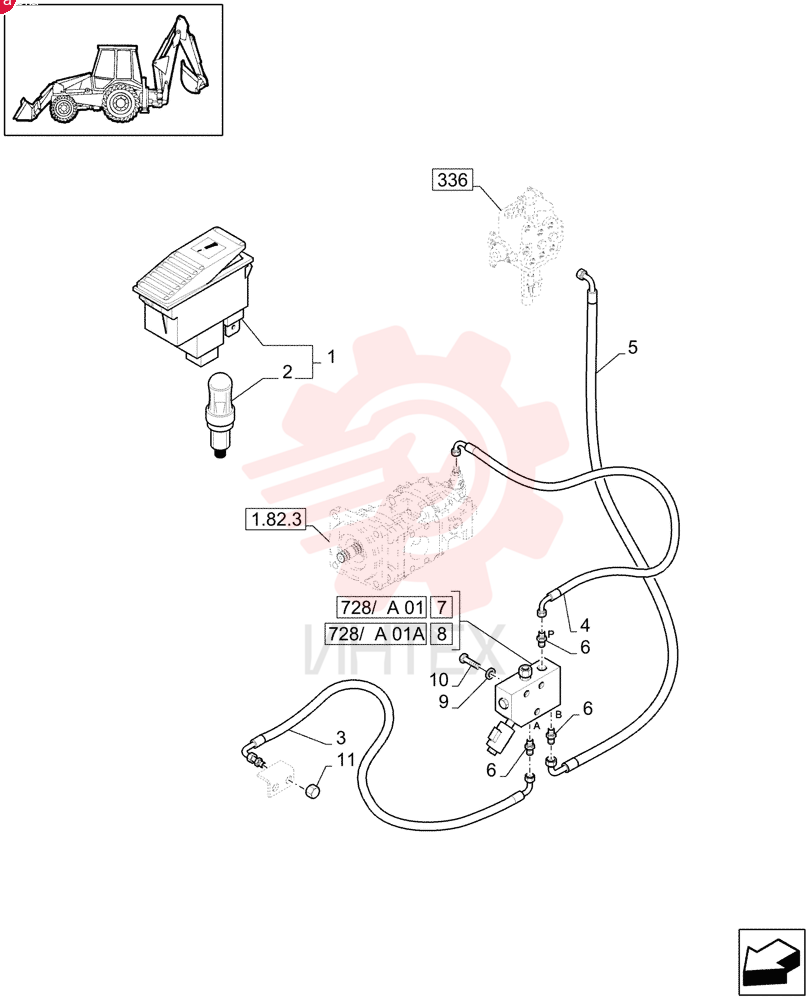

SWITCH ASSY 85819072 (2)

SWITCH ASSY 85819072 (2)

SWITCH ASSY 85819072 (2)

1 85819072

  • 85819072 - SWITCH ASSY

2 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

3 87619499

  • 87619499 - FLEXIBLE HOSE
  • 12.7mm ID x 1231mm L

4 87621906

  • 87621906 - FLEXIBLE HOSE
  • 15.9mm ID x 650mm L

5 87621913

  • 87621913 - FLEXIBLE HOSE
  • 15.9mm ID x 770mm L

6 85803234

  • 85803234 - HYD CONNECTOR
  • 1-1/16-12 ORFS x 1-1/16-12 ORB

7 87677506

  • 87677506 - HYDRAULIC VALVE

8 47450816

  • 47450816 - FLOW CONTROL VALVE

9 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

10 16044521

  • 16044521 - SCREW
  • Hex
  • M8 x 65mm
  • Cl 8.8

11 83987627

  • 83987627 - CAP
  • 1-14UN-2A
