New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

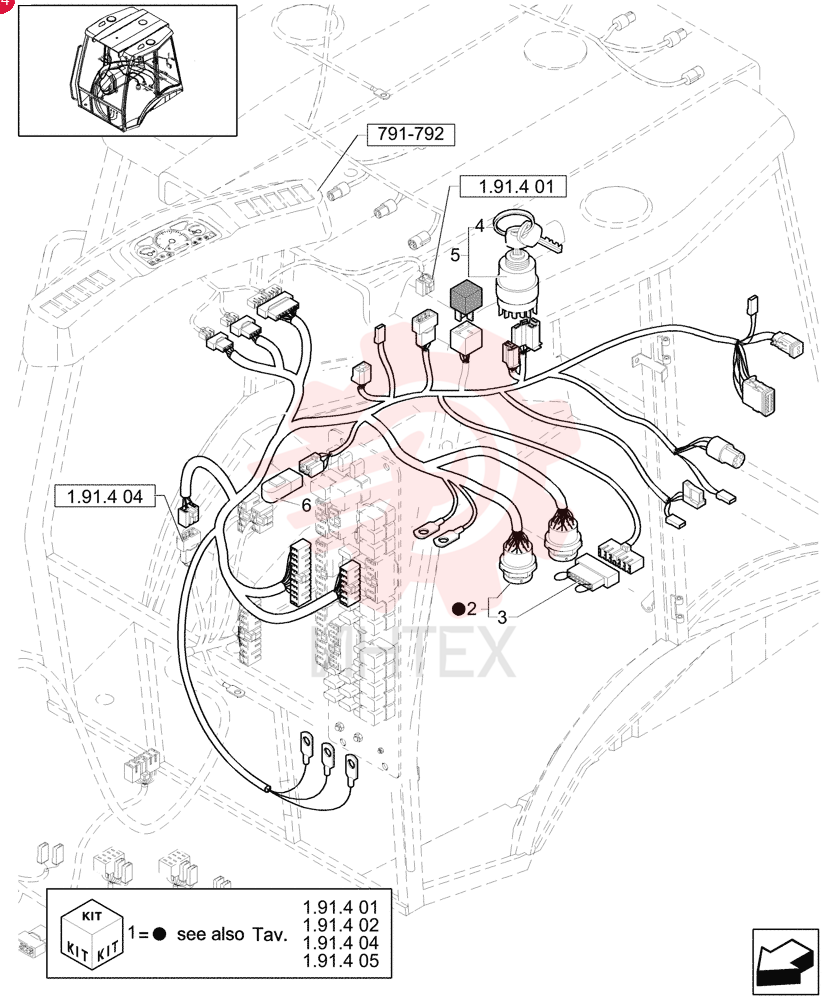

WIRE HARNESS 87431461

WIRE HARNESS 87431461

WIRE HARNESS 87431461

1 87431461

  • 87431461 - WIRE HARNESS

2 87431461

  • 87431461 - WIRE HARNESS

3 85821410

  • 85821410 - BLOCK

4 85804675

  • 85804675 - IGNITION KEY

5 87431469

  • 87431469 - IGNITION SWITCH
  • 7 Pins

6 85804674

  • 85804674 - IGNITION SWITCH
  • 10 Pins

7 87433891

  • 87433891 - ADAPTER
  • 3A
