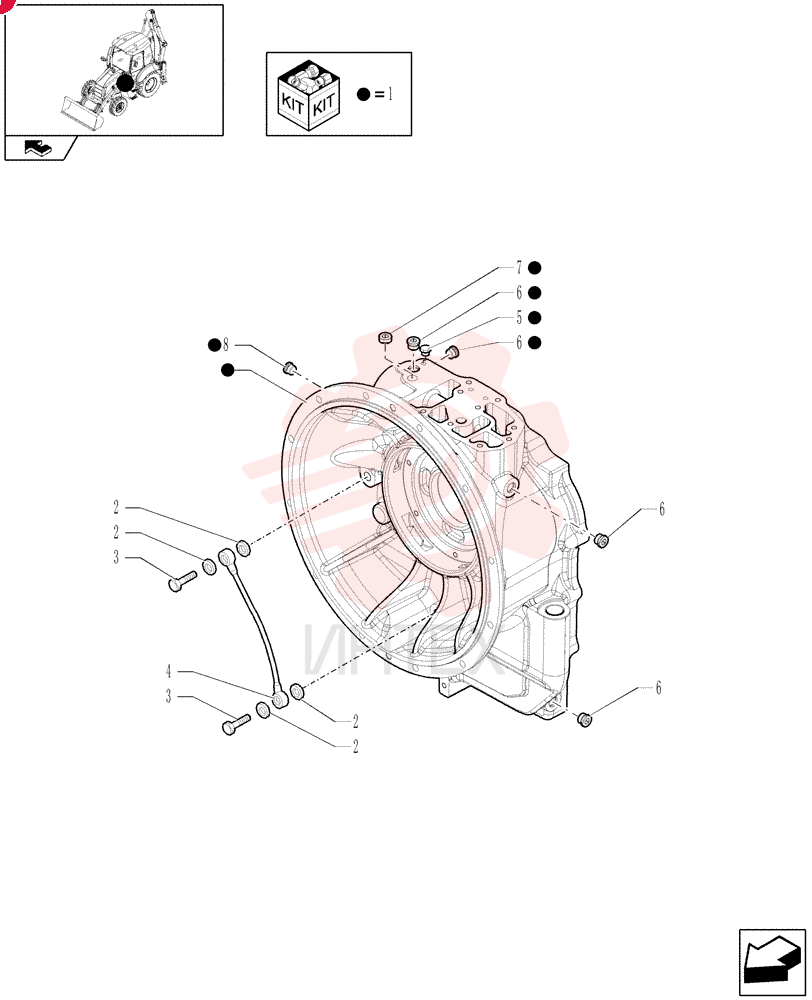

TRANSMISSION HOUSING 84214135

TRANSMISSION HOUSING 84214135

TRANSMISSION HOUSING 84214135

1 84214135

  • 84214135 - TRANSMISSION HOUSING

2 181105A1

  • 181105A1 - SEALING WASHER
  • 14mm ID x 20mm OD x 1.5mm Thk

3 181179A1

  • 181179A1 - BANJO BOLT

4 181232A1

  • 181232A1 - TUBE

5 87702570

  • 87702570 - PLUG
  • 7mm OD

6 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

7 87701260

  • 87701260 - PLUG
  • M16 x 1.5

8 181101A1

  • 181101A1 - PLUG
  • M14 x 1.5
