(B95B) - BACKHOE LOADER - TIER 3 (11/10-)
/

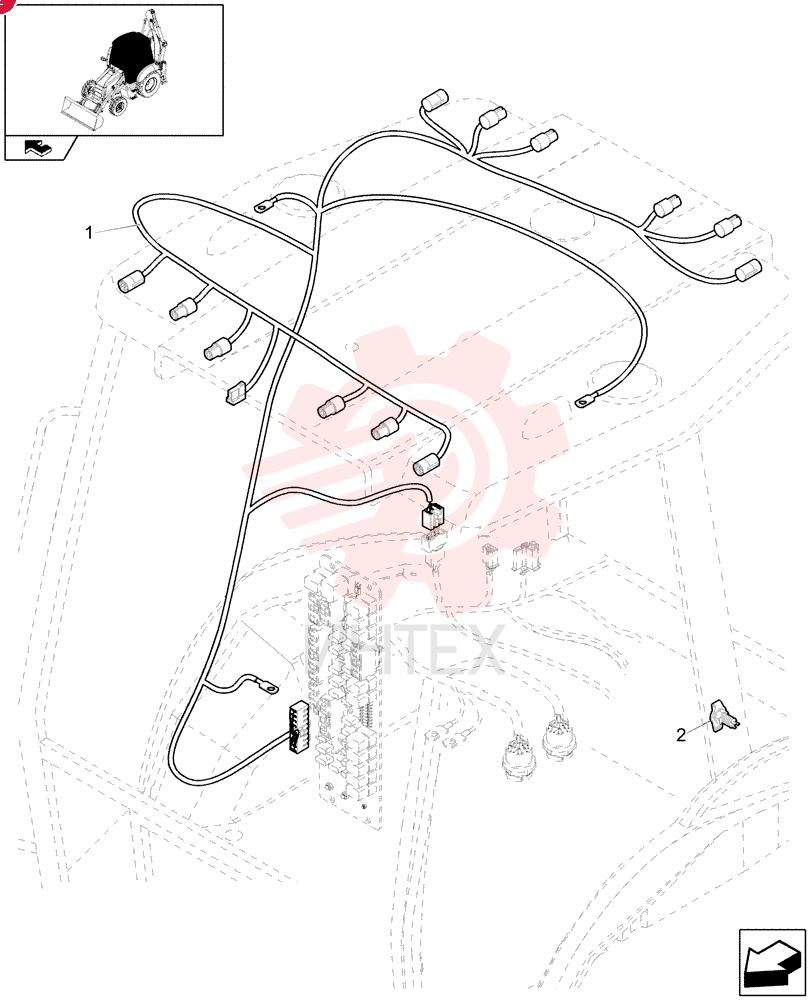

WIRE HARNESS 85819724

WIRE HARNESS 85819724

WIRE HARNESS 85819724

1 85819724

  • 85819724 - WIRE HARNESS

2 85819725

  • 85819725 - WIRE HARNESS

3 84191453

  • 84191453 - SOCKET
  • 12/24V
  • 20A
