New Holland Construction
/
(B95B) - BACKHOE LOADER TIER 3 (2008)
/

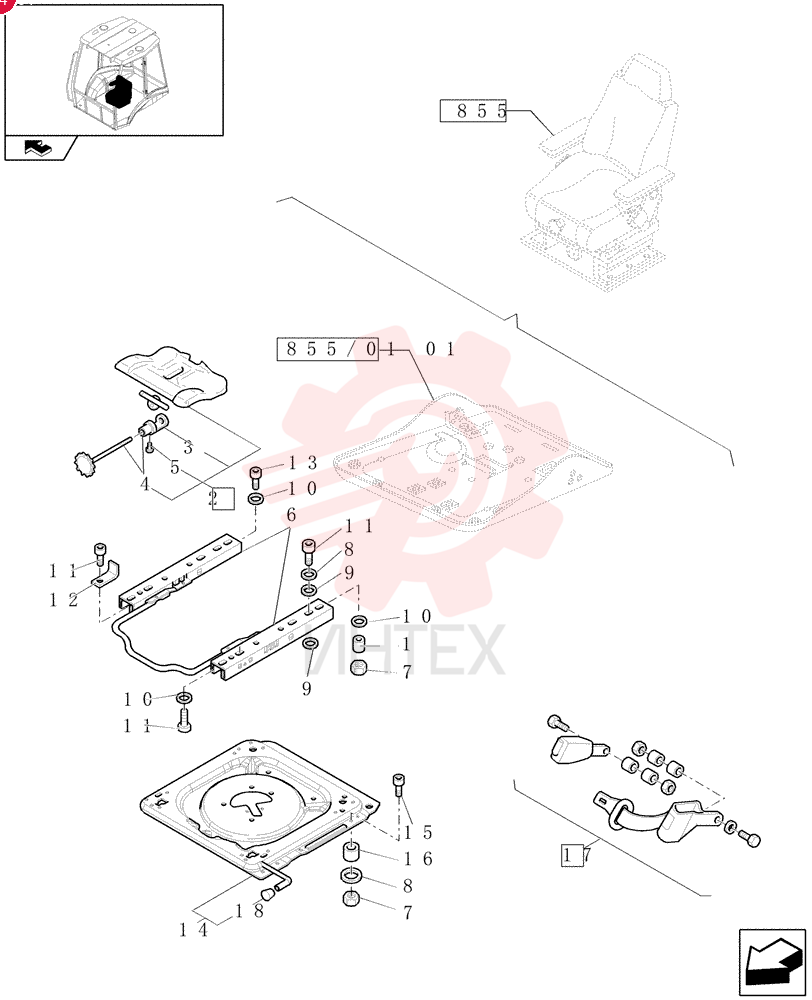

BUSHING

BUSHING

BUSHING

1 85819813

  • 85819813 - BUSHING

2 71485488

  • 71485488 - CONTROL

3 85817463

  • 85817463 - PLATE

4 85817464

  • 85817464 - ADJUSTMENT SCREW

5 9962962

  • 9962962 - SCREW
  • M5 x 10mm

6 85817484

  • 85817484 - KIT

7 85817458

  • 85817458 - NUT

8 9960692

  • 9960692 - WASHER

9 9958776

  • 9958776 - SPACER

10 82034881

  • 82034881 - WASHER
  • 8.4mm ID

11 9972160

  • 9972160 - SCREW
  • M8 x 25mm
  • Cl 8.8

12 85824204

  • 85824204 - BRACKET

13 82034893

  • 82034893 - SCREW
  • M8 x 1.25 x 1.25mm

14 87395588

  • 87395588 - PLATE

15 85817536

  • 85817536 - SCREW
  • M8 x 1.25 x 1.25mm

16 85817456

  • 85817456 - SPACER

17 87364220

  • 87364220 - SAFETY BELT
  • 48.00 mm W

18 87364221

  • 87364221 - SAFETY BELT
  • 75.00 mm W

19 85817482

  • 85817482 - KNOB
