(B95B) - BACKHOE LOADER TIER 3 (2008)
/

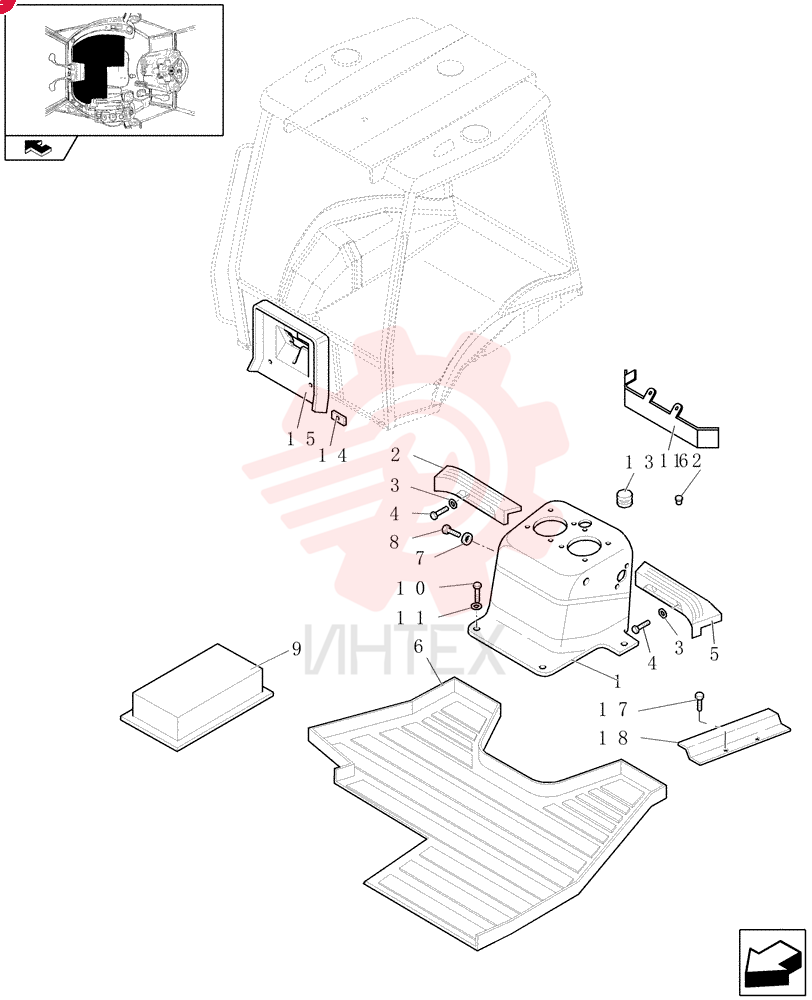

CONSOLE

CONSOLE

CONSOLE

1 87319801

  • 87319801 - CONSOLE

2 85804863

  • 85804863 - FOOTREST

3 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

4 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

5 85804864

  • 85804864 - FOOTREST

6 85804866

  • 85804866 - FLOOR MAT

7 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

8 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

9 4999021

  • 4999021 - GASKET

10 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

11 12640621

  • 12640621 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

12 87319803

  • 87319803 - PLUG
  • Transparent

13 82001909

  • 82001909 - PLUG
  • 33mm OD

14 85812080

  • 85812080 - NUT

15 87408893

  • 87408893 - PANEL

16 87323749

  • 87323749 - BRACKET

17 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

18 85805591

  • 85805591 - DOOR SILL MOULDING
