(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

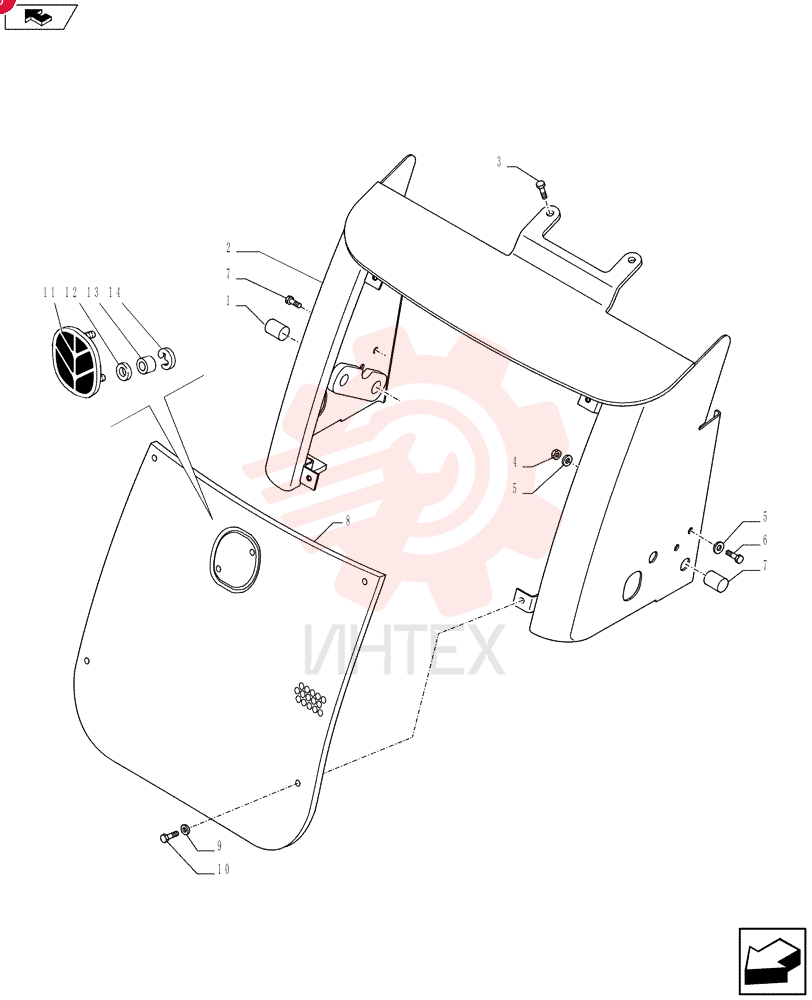

SPACER,14mm OD x 13mm L

SPACER,14mm OD x 13mm L

SPACER,14mm OD x 13mm L

1 87310506

  • 87310506 - SPACER
  • 14mm OD x 13mm L

2 84592198

  • 84592198 - WRAPPER

3 11106621

  • 11106621 - BOLT
  • Hex
  • M10 x 35mm
  • Cl 8.8
  • Full Thd

4 12163511

  • 12163511 - NUT
  • M20
  • Cl 8

5 14497101

  • 14497101 - WASHER
  • M20 x 37 x 3

6 9847023

  • 9847023 - BOLT
  • Hex
  • M20 x 2.5 x 50mm
  • Cl 8.8
  • Full Thd

7 87310507

  • 87310507 - SPACER
  • 14mm OD x 25mm L

8 84594431

  • 84594431 - GRILLE

9 13578378

  • 13578378 - WASHER
  • 8.15mm ID x 24mm OD x 2mm Thk

10 16043487

  • 16043487 - BOLT
  • Hex
  • M8 x 20mm

11 85820107

  • 85820107 - EMBLEM

12 12643721

  • 12643721 - WASHER
  • 6.15mm ID x 18mm OD x 1.5mm Thk

13 5138360

  • 5138360 - RING
  • 4mm ID x 12mm OD x 3mm Thk

14 5135069

  • 5135069 - CLIP
  • 10.9mm OD
