(B95BLR) - BACKHOE LOADER - TIER 3 (11/10-)
/

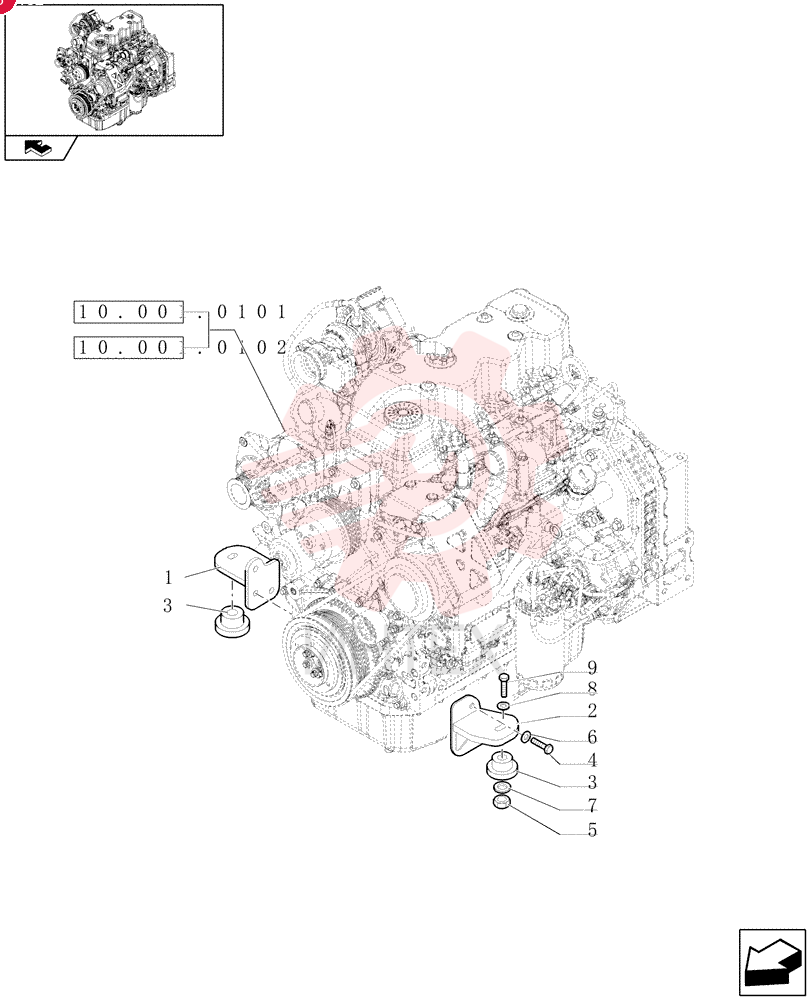

BRACKET, SUPPORTING

BRACKET, SUPPORTING

BRACKET, SUPPORTING

1 87475322

  • 87475322 - BRACKET
  • SUPPORTING

2 84177078

  • 84177078 - BRACKET

3 87488318

  • 87488318 - RUBBER MOUNTING

4 11112421

  • 11112421 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 8.8

5 16105011

  • 16105011 - NUT
  • Hex
  • M12 x 1.25
  • Cl 8

6 47048976

  • 47048976 - WASHER
  • 13.3mm ID x 28.5mm OD x 4mm Thk

7 85801585

  • 85801585 - SEALING WASHER
  • 13mm ID x 65mm OD x 5mm Thk

8 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

9 87410647

  • 87410647 - BOLT
  • Hex
  • M12 x 1.25 x 90mm
  • Cl 8.8
