(B95BLR) - BACKHOE LOADER - TIER 3 (11/10-)
/

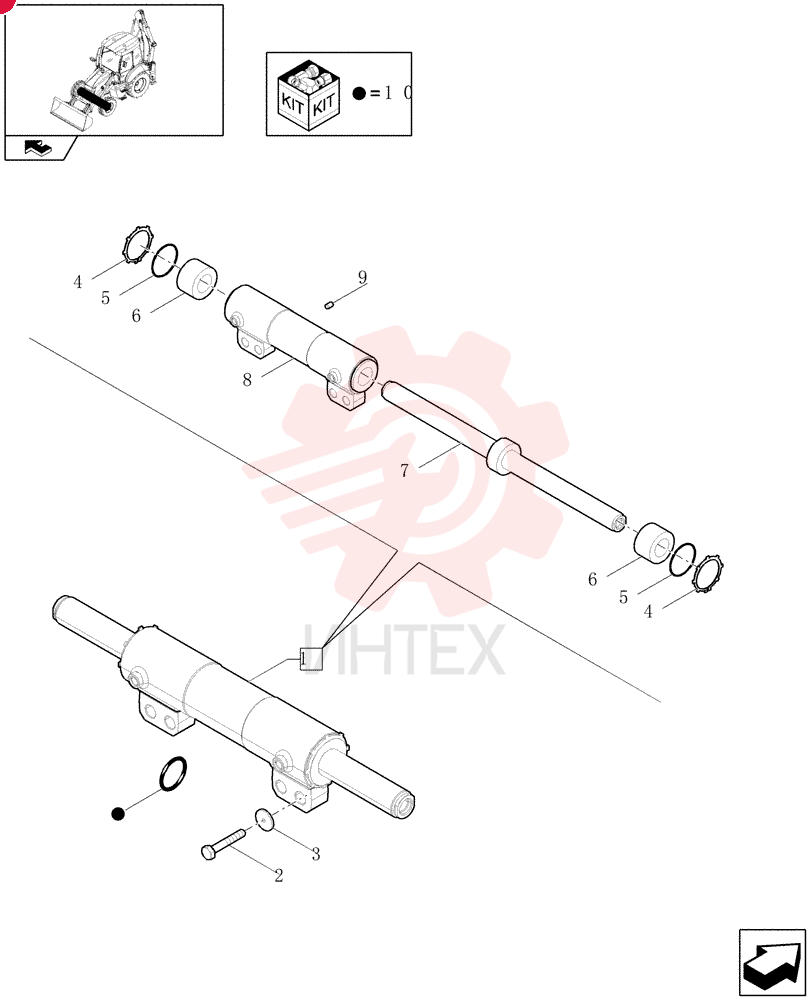

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (1)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (1)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (1)

1 84264406

  • 84264406 - STEERING CYLINDER
  • Double Acting
  • 40mm Rod
  • 70mm Bore
  • 249mm Stroke

2 84273750

  • 84273750 - LOCK BOLT

3 84249818

  • 84249818 -

4 84276995

  • 84276995 - CIRCLIP
  • 70mm Special

5 84276996

  • 84276996 - SNAP RING
  • 70mm OD x 2mm Thk

6 84276994

  • 84276994 - CYLINDER END CAP

7 84276953

  • 84276953 - ROD

8 84276952

  • 84276952 -

9 10839710

  • 10839710 - DOWEL
  • M10 x 15.00mm

10 84331720

  • 84331720 - SEAL KIT
