(B95BTC) - BACKHOE LOADER - TIER 3 (11/10-)
/

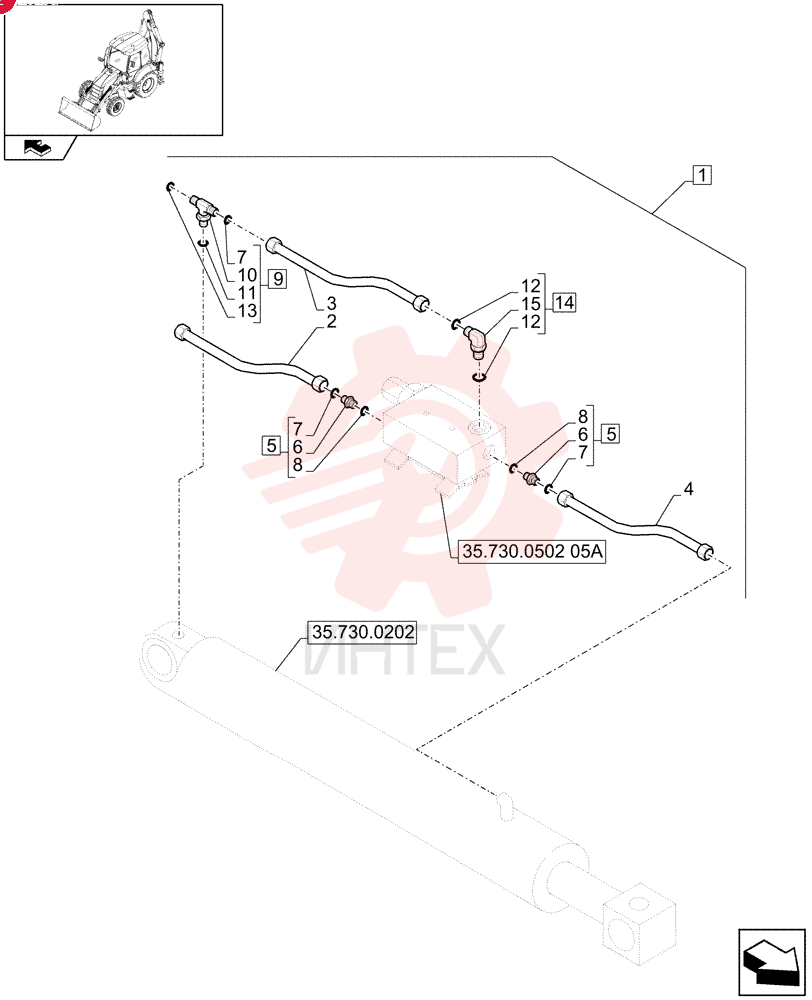

KIT 47392164 (3)

KIT 47392164 (3)

KIT 47392164 (3)

1 47392164

  • 47392164 - KIT

2 85812004

  • 85812004 - HYD TUBE

3 85827161

  • 85827161 - RIGID TUBE
  • 175.7
  • 45.5 mm L

4 85812006

  • 85812006 - HYD TUBE

5 83963374

  • 83963374 - FITTING
  • 13/16"-16 ORFS x 3/4"-16 ORB

6 NSS

  • NSS - NOT SOLD SEPARAT

7 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

8 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

9 85805218

  • 85805218 - TEE
  • 13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB

10 NSS

  • NSS - NOT SOLD SEPARAT

11 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

12 9825770

  • 9825770 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

13 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

14 85805220

  • 85805220 - ELBOW
  • 90 Degree
  • 9/16"-18 x 9/16"-18 Adj
  • ORFS

15 NSS

  • NSS - NOT SOLD SEPARAT
