New Holland Construction
/
(B95BTC) - BACKHOE LOADER - TIER 3 (11/10-)
/

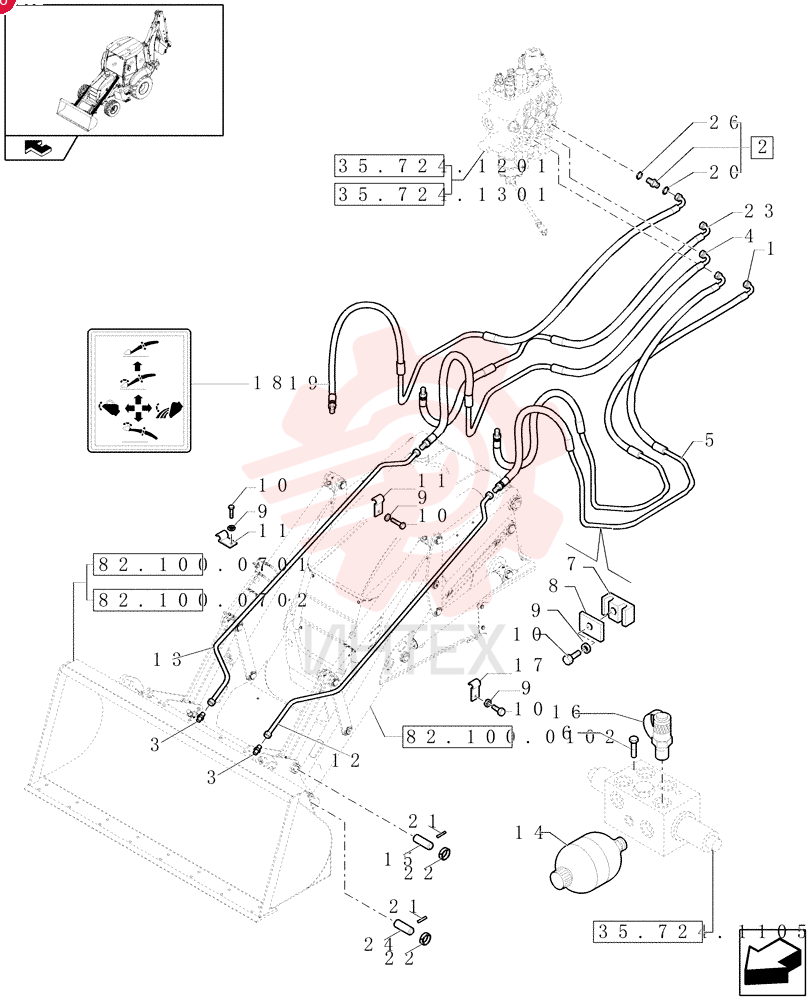

TUBE,12.2 mm ID x 16.2 mm OD

TUBE,12.2 mm ID x 16.2 mm OD

TUBE,12.2 mm ID x 16.2 mm OD

1 87536580

  • 87536580 - TUBE
  • 12.2 mm ID x 16.2 mm OD

2 83963376

  • 83963376 - FITTING
  • 13/16"-16 ORFS x 7/8"-14 ORB

3 85803408

  • 85803408 - PLUG
  • 13/16" - 16 ORFS

4 85819572

  • 85819572 - HYD TUBE

5 85819571

  • 85819571 - HYD TUBE

6 14300521

  • 14300521 - HEX SOC SCREW
  • M6 x 75mm
  • Cl 8.8

7 85805193

  • 85805193 - CLAMP
  • 12mm ID

8 85805195

  • 85805195 - PLATE

9 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

10 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

11 87536183

  • 87536183 - PIPE CLAMP

12 87536582

  • 87536582 - TUBE
  • 11.16 mm ID x 1927.04
  • 270.5 mm L

13 87536583

  • 87536583 - TUBE
  • 1913.08
  • 261.18 mm L

14 87425225

  • 87425225 - ACCUMULATOR
  • 0.16L

15 85805306

  • 85805306 - PIN
  • 45mm OD x 204.5mm L

16 87566842

  • 87566842 - COUPLING
  • QUICK
  • FEM
  • 3/4" Male

17 85805247

  • 85805247 - CLAMP
  • 12.5mm ID
  • 9mm Bolt Hole
  • J Type

18 85804346

  • 85804346 - DECAL

19 84172662

  • 84172662 - RIGID TUBE

20 80167269

  • 80167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

21 85804534

  • 85804534 - ROLL PIN
  • 12mm OD x 64.5mm L

22 85802974

  • 85802974 - RING
  • 64mm ID x 69mm OD x 10mm Thk

23 87536581

  • 87536581 - TUBE
  • 12.2 mm ID x 16.2 mm OD x 801
  • 420.9 mm L

24 85804533

  • 85804533 - PIN
  • 45mm OD x 204.5mm L

25 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
