New Holland Construction
/
(B95BTC) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

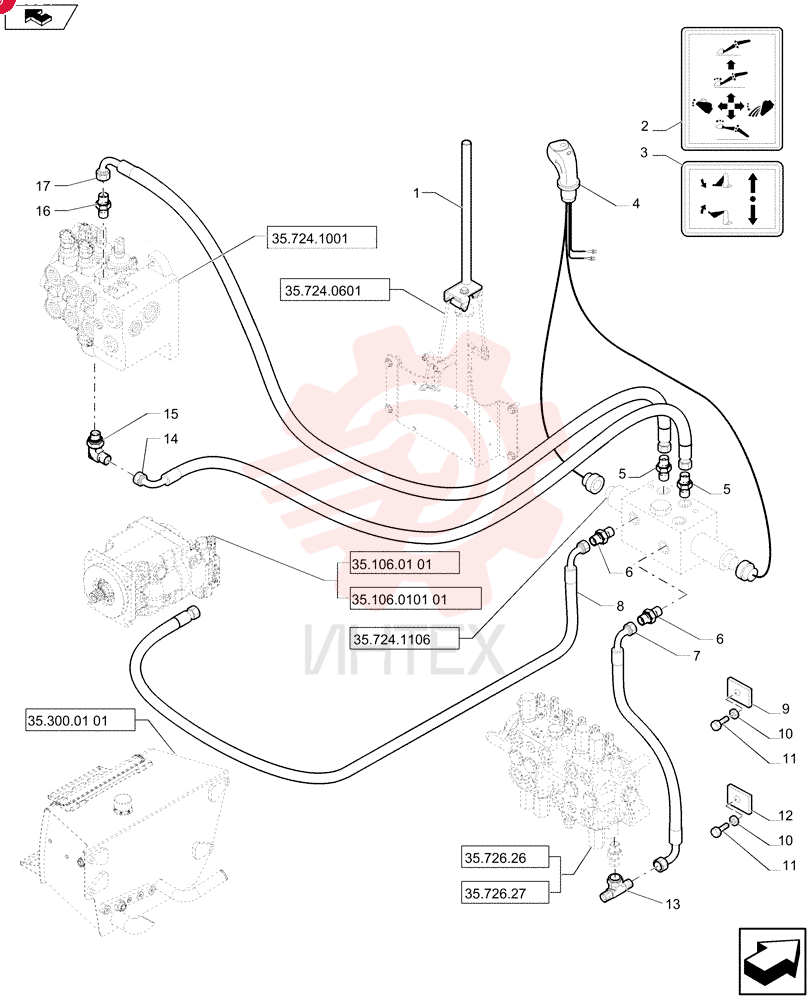

LEVER 87646646 (3)

LEVER 87646646 (3)

LEVER 87646646 (3)

1 87646646

  • 87646646 - LEVER

2 85804346

  • 85804346 - DECAL

3 87305209

  • 87305209 - DECAL

4 87485863

  • 87485863 - JOYSTICK

5 218-5053

  • 218-5053 - HYD CONNECTOR
  • 7/16" - 20 JIC x 7/16" - 20 ORB

6 218-5057

  • 218-5057 - HYD CONNECTOR
  • 9/16" - 18 JIC x 9/16" - 18 ORB

7 87486280

  • 87486280 - FLEXIBLE HOSE
  • 6.3mm ID x 1850mm L

8 87486287

  • 87486287 - FLEXIBLE HOSE
  • 10mm ID x 600mm L

9 85805340

  • 85805340 - PLATE

10 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

11 16043821

  • 16043821 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd

12 85805195

  • 85805195 - PLATE

13 85827466

  • 85827466 - TEE
  • 9/169-18 JIC

14 87486279

  • 87486279 - FLEXIBLE HOSE
  • 6.3mm ID x 500mm L

15 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

16 85803312

  • 85803312 - HYD CONNECTOR
  • 7/16"-20 JIC x 9/16"-18 ORB

17 87303400

  • 87303400 - FLEXIBLE HOSE
  • 6.4mm ID x 350mm L
