(B95BTC) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

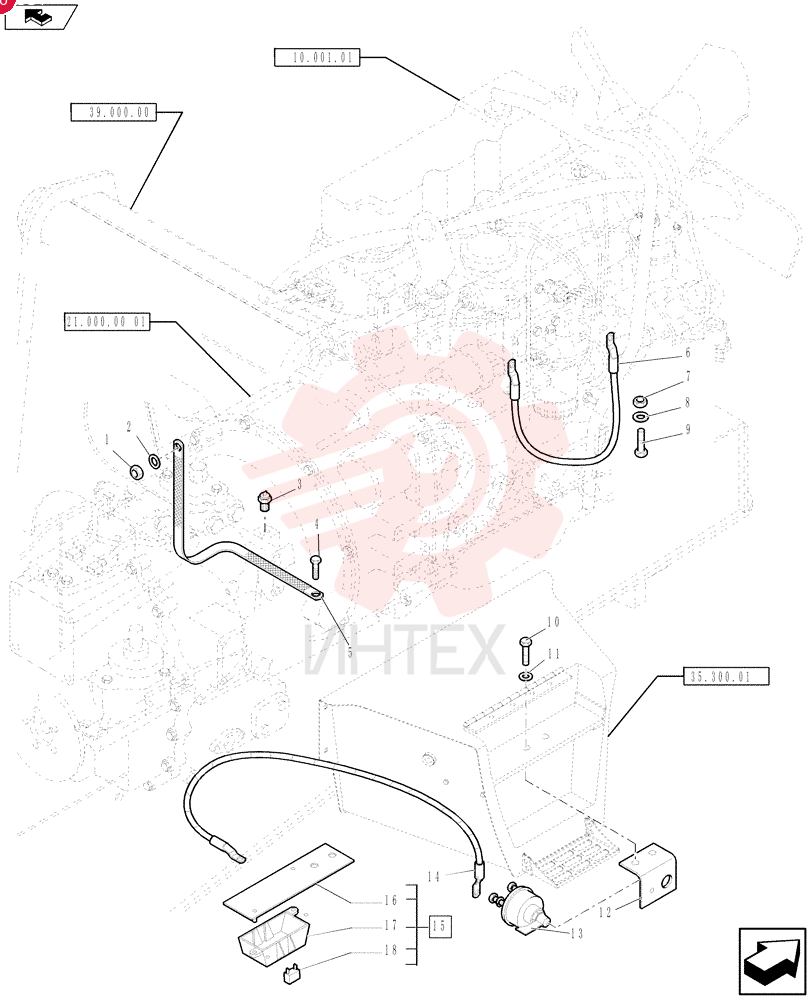

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

2 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

3 84300765

  • 84300765 - TEMPERATURE SENDER
  • 1/2" - 14 NPTF

4 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

5 87407206

  • 87407206 - GROUND STRAP

6 87636291

  • 87636291 - CABLE
  • 450mm L

7 47049031

  • 47049031 - NUT
  • M10 x 1.5
  • Cl 10

8 47048993

  • 47048993 - LOCK WASHER
  • 10mm ID

9 47049010

  • 47049010 - BOLT
  • Hvy Hex
  • M10 x 20mm
  • Cl 8.8

10 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

11 11197879

  • 11197879 - BELLEVILLE WASHER
  • 8.4mm ID x 16mm OD x 2.2mm Thk

12 87613641

  • 87613641 - SUPPORT

13 87409316

  • 87409316 - SWITCH

14 87427925

  • 87427925 - CABLE
  • 1760mm L

15 84286444

  • 84286444 - HARNESS

16 84281612

  • 84281612 - SUPPORT

17 87302554

  • 87302554 - ELEC CONNECTOR
  • 6 Fuses

18 87616212

  • 87616212 - FUSE
  • 80A
  • Megaval
