New Holland Construction
/
(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4A (3/12-)
/

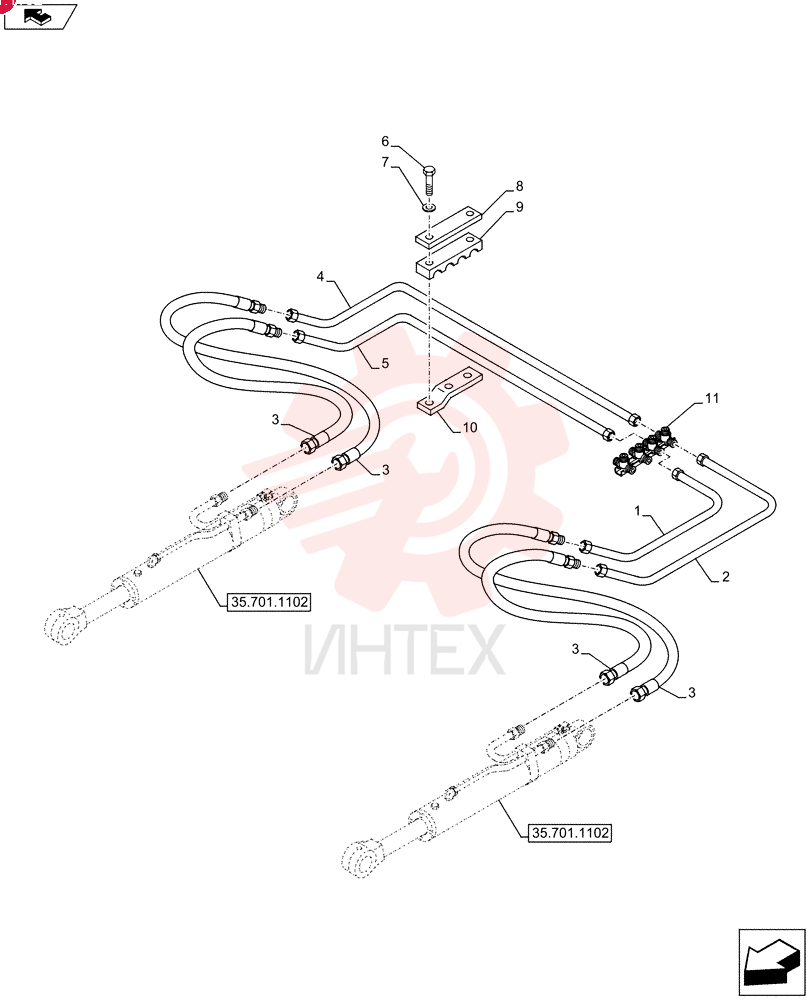

TUBE 47454472

TUBE 47454472

TUBE 47454472

1 47454472

  • 47454472 - TUBE

2 47454473

  • 47454473 - HYD TUBE

3 47371554

  • 47371554 - HYDRAULIC HOSE
  • 12.5mm ID x 643mm L

4 47454477

  • 47454477 - PIPE

5 47454475

  • 47454475 - HYD TUBE

6 16043921

  • 16043921 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

7 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

8 85805207

  • 85805207 - PLATE

9 47376458

  • 47376458 - CLAMP

10 85805206

  • 85805206 - BRACKET

11 47372346

  • 47372346 - HYDRAULIC MANIFOLD
