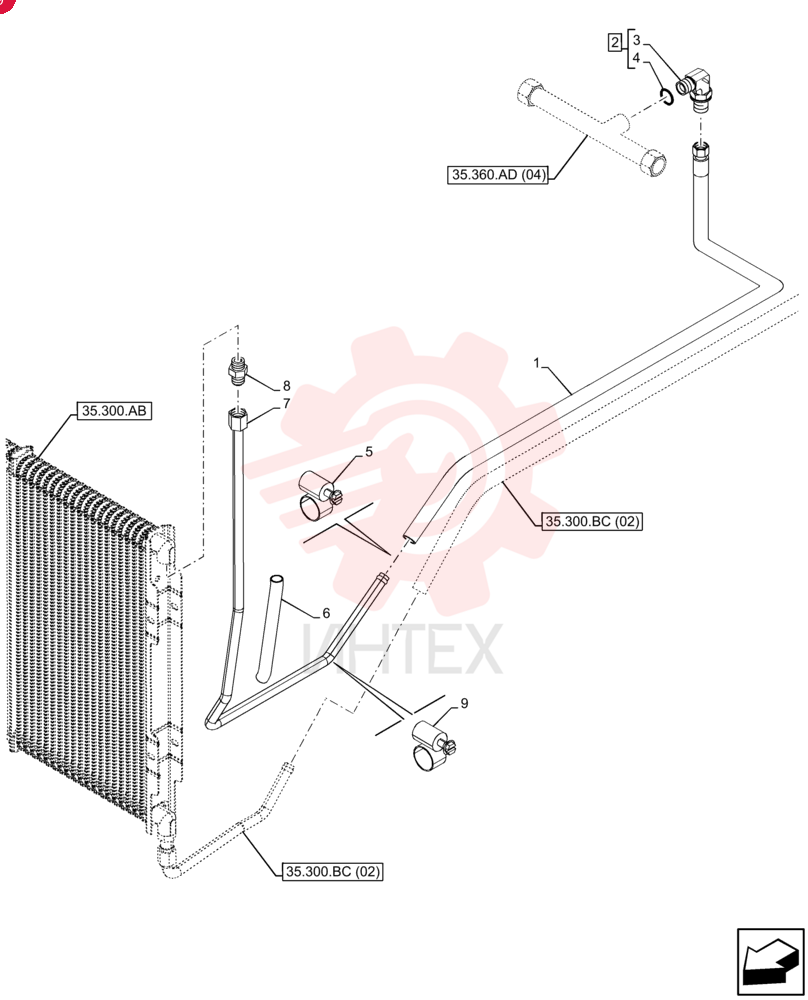

(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/
HYDRAULIC HOSE 47619689 (1)

HYDRAULIC HOSE 47619689 (1)

HYDRAULIC HOSE 47619689 (1)

1 47619689

  • 47619689 - HYDRAULIC HOSE

2 164910

  • 164910 - 90 ELBOW
  • 7/8" - 14 JIC x 7/8" - 14 ORB

3 NSS

  • NSS - NOT SOLD SEPARAT

4 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

5 84177573

  • 84177573 - CLAMP
  • 16mm - 27mm

6 87311219

  • 87311219 - HOSE PROTECTION
  • 16.80 mm ID x 250.00 mm

7 84485237

  • 84485237 - TUBE

8 87301330

  • 87301330 - HYD CONNECTOR
  • 7/8" - 14 ORB x 7/8" - 14 JIC

9 86625021

  • 86625021 - HOSE CLAMP
  • 17.5mm - 31.7mm
  • Worm Gear
