(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

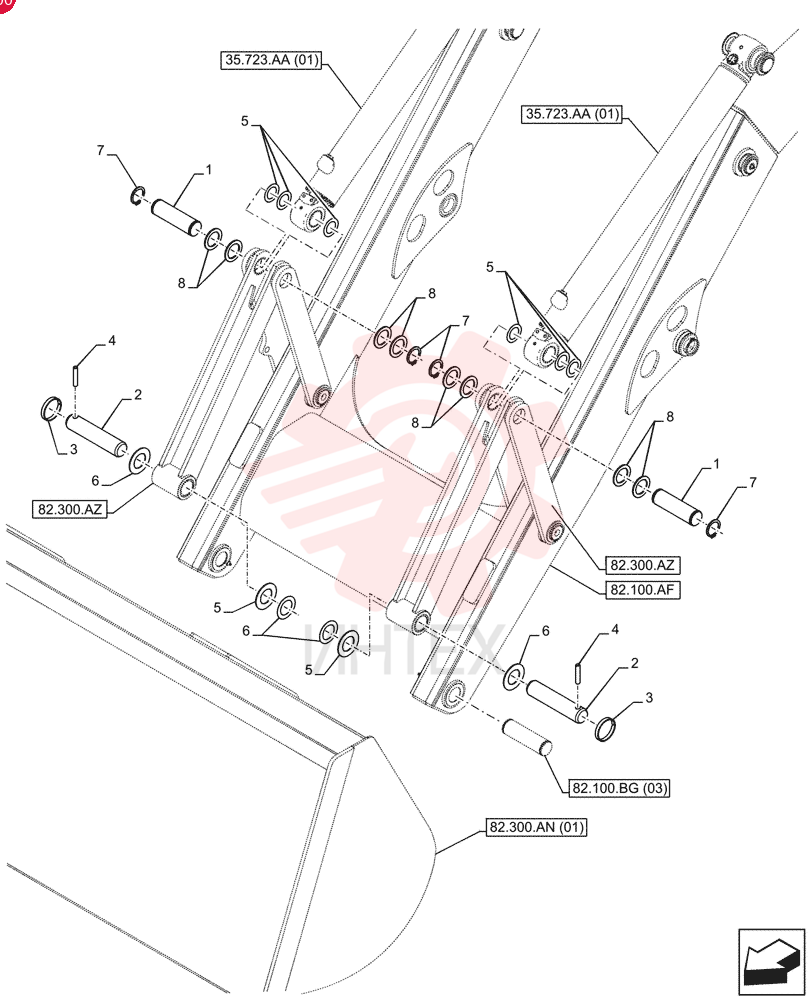

PIN,45mm OD x 156mm L 84198168

PIN,45mm OD x 156mm L 84198168

PIN,45mm OD x 156mm L 84198168

1 84198168

  • 84198168 - PIN
  • 45mm OD x 156mm L

2 85805306

  • 85805306 - PIN
  • 45mm OD x 204.5mm L

3 85802974

  • 85802974 - RING
  • 64mm ID x 69mm OD x 10mm Thk

4 85804534

  • 85804534 - ROLL PIN
  • 12mm OD x 64.5mm L

5 85818916

  • 85818916 - SHIM
  • 46mm ID x 70mm OD x 1mm Thk

6 85828253

  • 85828253 - SHIM
  • 46mm ID x 80mm OD x 2.5mm Thk

7 86625149

  • 86625149 - SNAP RING
  • #175
  • Ext

8 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L
