(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

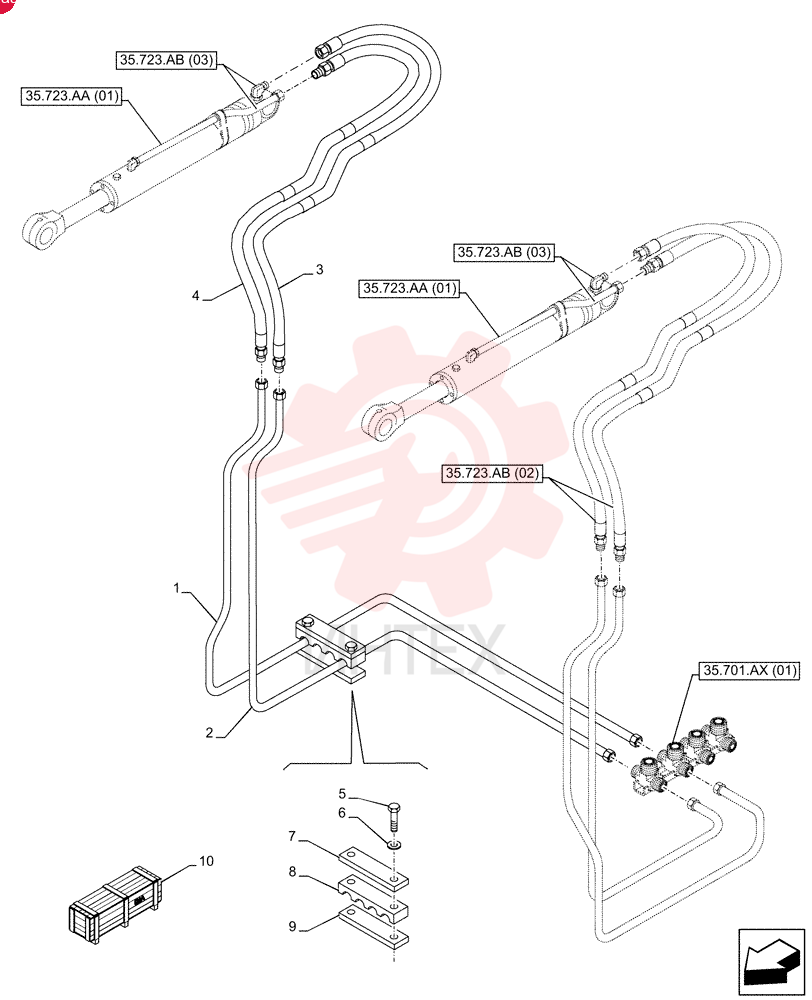

PIPE 84124775

PIPE 84124775

PIPE 84124775

1 84124775

  • 84124775 - PIPE

2 84161877

  • 84161877 - PIPE

3 87535342

  • 87535342 - PIPE

4 87535343

  • 87535343 - PIPE

5 16043921

  • 16043921 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

6 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

7 85805209

  • 85805209 - PLATE

8 47376456

  • 47376456 - CLAMP
  • 146mm L x 30mm W x 20mm Thk

9 85805210

  • 85805210 - PLATE

10 47508817

  • 47508817 - CONSTRUCTION DIA
