(B95TC) - NA BACKHOE LOADER (1/06-)
/

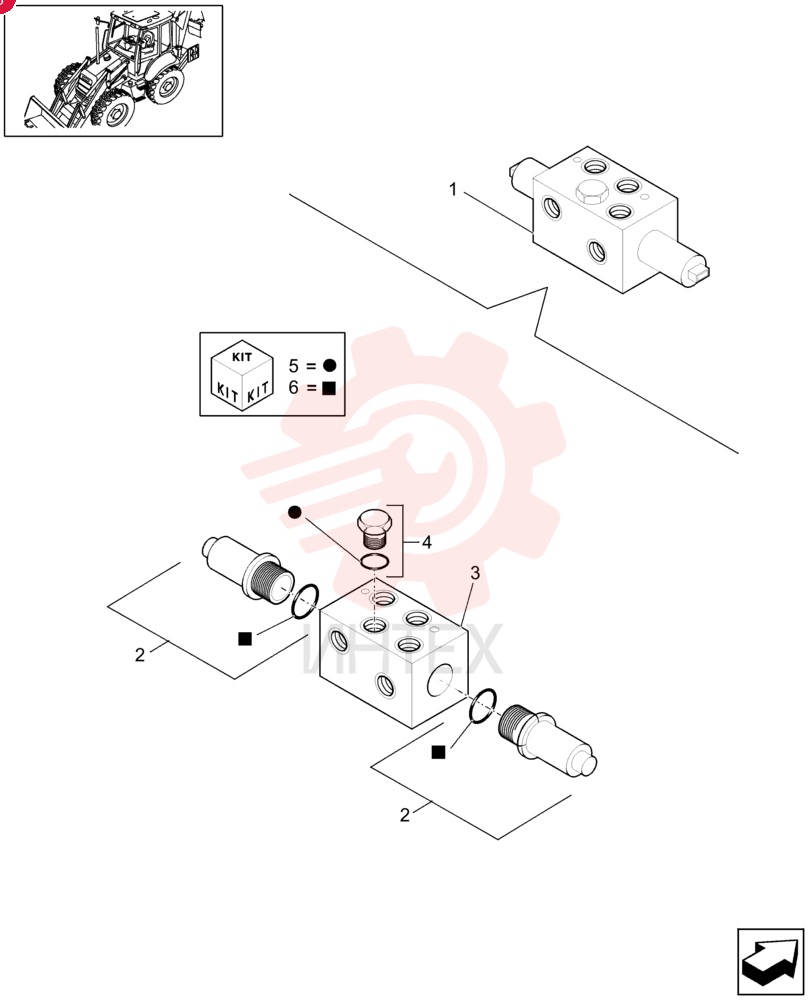

VALVE 87566480

VALVE 87566480

VALVE 87566480

1 87566480

  • 87566480 - VALVE

2 85827993

  • 85827993 - SOLENOID VALVE

3 87311363

  • 87311363 - ORIFICE
  • 1.8mm ID

4 87739122

  • 87739122 - VALVE

5 85828001

  • 85828001 - SEAL KIT

6 85828000

  • 85828000 - SEAL KIT
