New Holland Construction
/

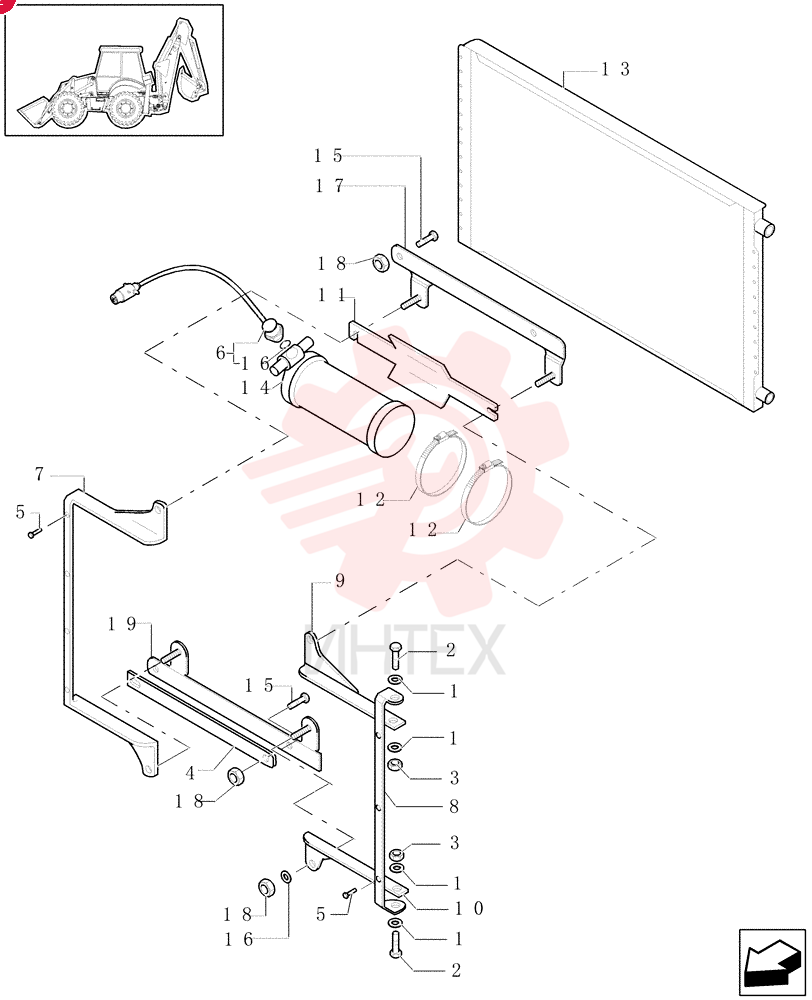

(B95TC) - NA BACKHOE LOADER (1/06-)
/
WASHER,M8

WASHER,M8

WASHER,M8

1 14496534

  • 14496534 - WASHER
  • M8

2 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

3 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

4 87315252

  • 87315252 - BRACKET

5 85819184

  • 85819184 - SCREW

6 85804065

  • 85804065 - PRESSURE SWITCH

7 87315214

  • 87315214 - BRACKET

8 87630384

  • 87630384 - BRACKET

9 87646122

  • 87646122 - BRACKET

10 87315219

  • 87315219 - BRACKET

11 87646126

  • 87646126 - BRACKET

12 87315221

  • 87315221 - BRACKET

13 87630386

  • 87630386 - BRACKET

14 87315225

  • 87315225 - BRACKET

15 87630383

  • 87630383 - BRACKET

16 87315236

  • 87315236 - BRACKET

17 87315239

  • 87315239 - HOSE CLAMP
  • 65 - 85mm

18 87314566

  • 87314566 - CONDENSER

19 87315241

  • 87315241 - FILTER

20 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

21 85819185

  • 85819185 - SEAL

22 87319438

  • 87319438 - SUPPORT

23 14040711

  • 14040711 - NUT

24 87319441

  • 87319441 - SUPPORT
