New Holland Construction
/
(C227) - COMPACT TRACK LOADER - NRC (10/13-)
/

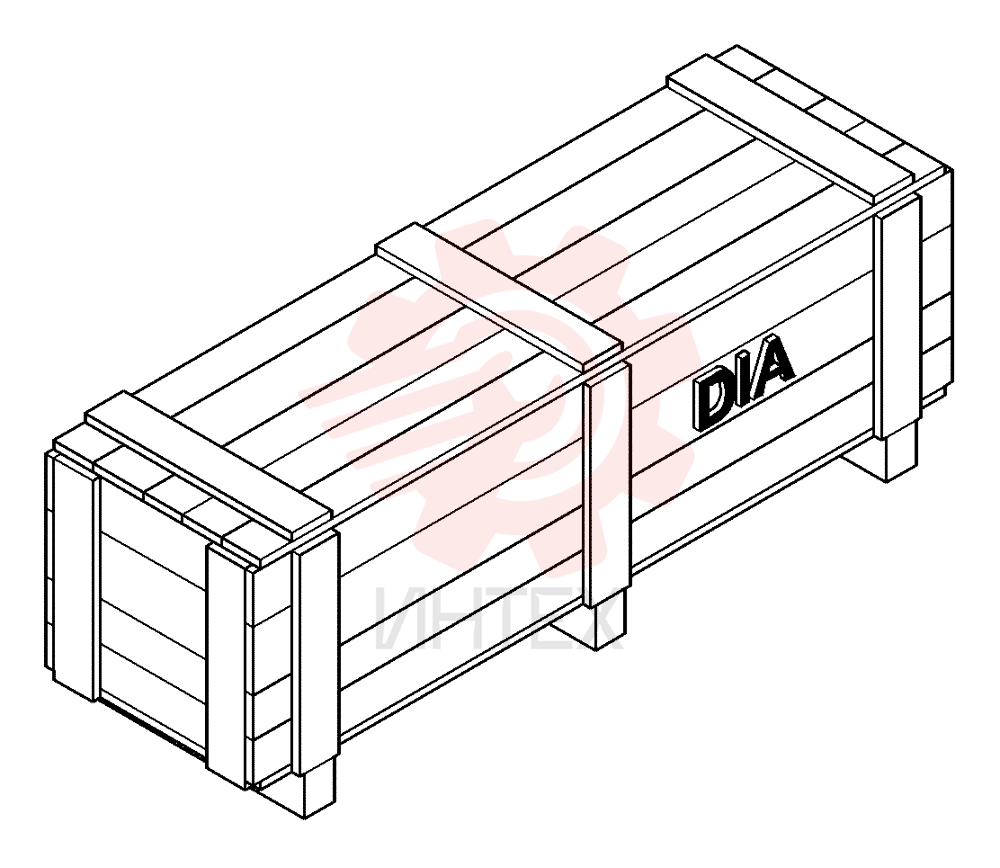

KIT 47587913

KIT 47587913

KIT 47587913

1 47587913

  • 47587913 - KIT
  • Kit
  • Foot Controls
  • NR
  • Incl 2 - 51

2 47591306

  • 47591306 - INSTRUCTION
  • Foot Control
  • Sheet

3 228500

  • 228500 - BUSHING
  • 19.07mm ID x 24.69mm OD x 15.88mm L
  • Hat

4 234726

  • 234726 - CLEVIS PIN
  • 6.29mm OD x 20mm L

5 600083

  • 600083 - WASHER
  • 19.3mm ID x 28.7mm OD x 1.36mm Thk
  • 28.7mm x 19.5mm x 1.36mm

6 856800

  • 856800 - GROOVED PIN
  • 4.76mm OD x 38.1mm L

7 9804260

  • 9804260 - BOLT
  • Hex
  • M8 x 1.25 x 30mm
  • Full Thd
  • Cl 8.8

8 9804277

  • 9804277 - FLANGE NUT
  • Hex
  • M8 x 1.25
  • Cl 8

9 10090811

  • 10090811 - NUT
  • M10 x 1.25 x 90mm
  • Cl R50

10 14305221

  • 14305221 - HEX SOC SCREW
  • M6 x 16mm
  • Full Thd
  • Cl 8.8

11 47399170

  • 47399170 - ROD
  • M10 x 1.25 x 331.3mm L
  • Foot Control

12 47408128

  • 47408128 - THROTTLE CONTROL
  • 3240mm L
  • Throttle To Gov

13 47551496

  • 47551496 - TUBE
  • RH
  • Foot Control Handle

14 47551499

  • 47551499 - TUBE
  • LH
  • Foot Control Handle

15 83980600

  • 83980600 - THIN NUT
  • M10 x 1.25
  • Cl 8

16 84201070

  • 84201070 - SHAFT
  • 19.06mm OD x 557.8mm L
  • Pedal

17 84291866

  • 84291866 - RETAINER COLLAR
  • 19.05mm ID x 31.75mm OD x 9.53mm W
  • Incl Set Screw
  • 3/4" Shaft

18 84317959

  • 84317959 - ROD
  • M10 x 1.25 x 278mm L
  • Valve Lift

19 84317960

  • 84317960 - ROD
  • M10 x 1.25 x 233.3mm L
  • Valve Tip

20 84317963

  • 84317963 - ROD
  • M10 x 1.25 x 339mm L
  • Foot Control

21 84321368

  • 84321368 - ROD
  • 9.53mm OD x 274.1mm L
  • Valve Tip

22 84321369

  • 84321369 - ROD
  • 9.53mm OD x 319mm L
  • Valve Lift

23 84353734

  • 84353734 - DECAL
  • 100-200-250 LH

24 84353738

  • 84353738 - DECAL
  • 100-200-250 RH

25 84353741

  • 84353741 - DECAL
  • 300-350 LH

26 84353742

  • 84353742 - DECAL
  • 300-350 RH

27 84355747

  • 84355747 - BOOT
  • Foot Controls

28 84373687

  • 84373687 - PLATE
  • Pedal Cover

29 84374988

  • 84374988 - DAMPER
  • 143.5mm Extended
  • 118.5mm Compressed
  • Foot Pedal

30 84383309

  • 84383309 - BRACKET
  • Pedal

31 84383310

  • 84383310 - PLATE
  • Pedal

32 84383313

  • 84383313 - PLATE
  • Bracket Backing

33 84383330

  • 84383330 - PEDAL
  • RH

34 84383720

  • 84383720 - PEDAL
  • LH

35 84386279

  • 84386279 - KIT
  • Kit
  • Foot Bucket Spring

36 84386280

  • 84386280 - KIT
  • Kit
  • Foot Boom Spring

37 84531450

  • 84531450 - BOOT
  • RH

38 84531817

  • 84531817 - BOOT
  • LH

39 84553555

  • 84553555 - BUSHING
  • 19.25mm ID x 25.63mm OD x 8mm L
  • Foot Control Pivot

40 84555971

  • 84555971 - BRACKET
  • Foot Control

41 84561938

  • 84561938 - PLATE
  • Hand Control Ear

42 86619801

  • 86619801 - FLANGE NUT
  • M8 x 1.25
  • Cl 8

43 87343114

  • 87343114 - BOLT
  • 0.375" - 16 x 1"
  • Full Thd
  • Gr 5

44 87586484

  • 87586484 - DECAL
  • EU Foot Controls
  • LH

45 87586485

  • 87586485 - DECAL
  • EU Foot Controls
  • RH

46 87668737

  • 87668737 - CABLE TIE
  • 203.2mm L
  • Nylon
  • Fir Tree

47 87682398

  • 87682398 - SCREW
  • Torx
  • Round HD
  • M6 x 16mm
  • Cl 10.9

48 294901A1

  • 294901A1 - U-BOLT
  • M8 x 1.25
  • Coined

49 378884A2

  • 378884A2 - STRAP
  • 254mm L
  • Panel Tie

50 402610A1

  • 402610A1 - FASTENER
  • Pine-Tree Clip

51 D131983

  • D131983 - COTTER PIN
  • 1.04mm OD x 21.4mm L
  • Ring
  • Ring Cotter
