New Holland Construction
/
(C227) - COMPACT TRACK LOADER - TIER 4B (10/13-)
/

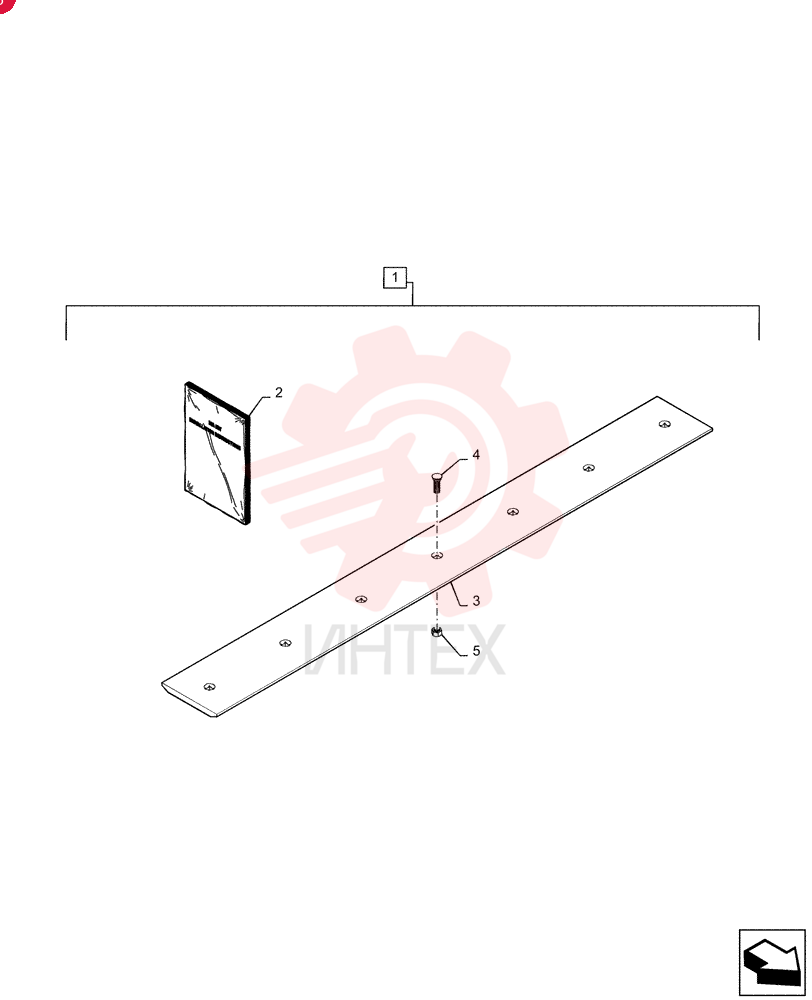

KIT 84399877

KIT 84399877

KIT 84399877

1 84399877

  • 84399877 - KIT
  • Bolt On Cutting Edge
  • 66" Bucket
  • Grey
  • Incl 2 - 5

2 84399871

  • 84399871 - INSTRUCTION
  • Installation Sheet

3 86577167

  • 86577167 - CUTTING EDGE
  • Bolt On
  • Double Edged
  • 7 Hole
  • 203.2mm W x 1673.2mm L
  • Bolt On
  • 66"
  • Gray

4 86548338

  • 86548338 - PLOW BOLT
  • #3
  • 5/8" - 11 x 2"
  • Gr 5

5 280374

  • 280374 - NUT
  • Hex
  • 5/8" - 11
  • Gr 5
