New Holland Construction
/
(C232) - COMPACT TRACK LOADER (4/11-)
/

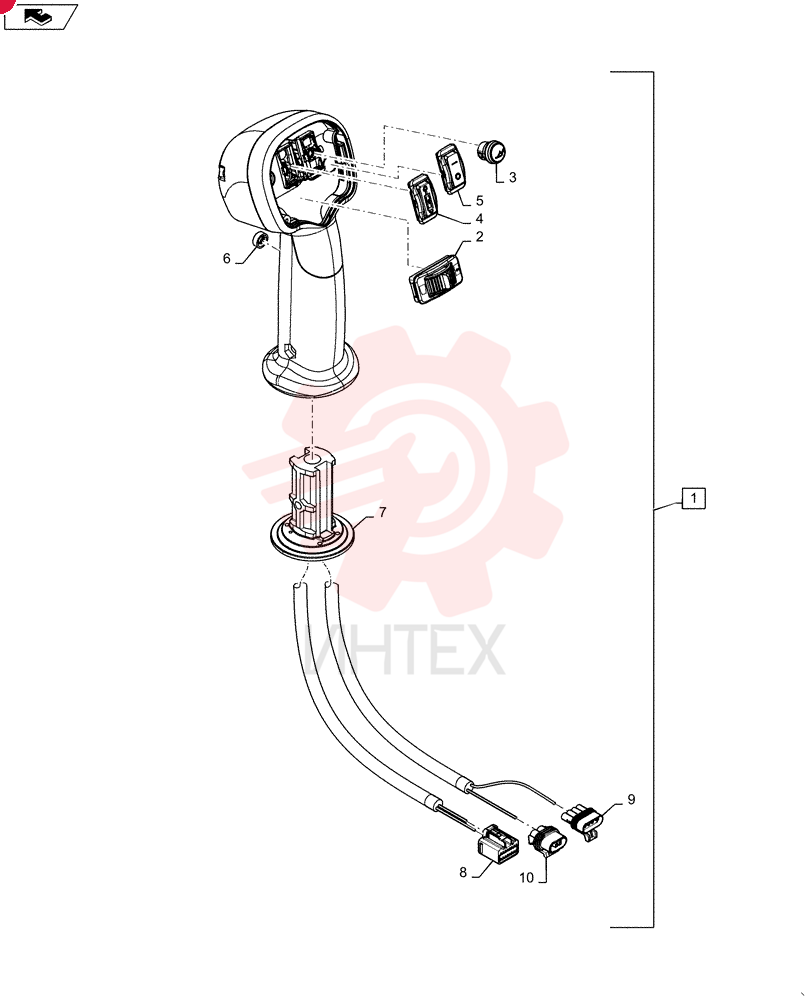

GRIP

GRIP

GRIP

1 84396076

  • 84396076 - GRIP
  • RH
  • Level 350
  • Incl 2 - 10

2 84282677

  • 84282677 - SWITCH
  • Proportional Hyd W/ Detent Dual

3 84296544

  • 84296544 - SWITCH
  • Proportional Hyd W/ Detent Single (Optional)

4 84537211

  • 84537211 - SWITCH
  • Proportional Hyd W/O Detent Single (Optional)

5 84528445

  • 84528445 - SWITCH
  • Proportional Hyd W/O Detent Dual (Optional)

6 84296543

  • 84296543 - SWITCH
  • Float

7 84296545

  • 84296545 - SWITCH
  • Multifunction #1
  • 3 Position Rocker

8 84398133

  • 84398133 - SWITCH
  • Multifunction #4
  • 2 Position Rocker

9 87427352

  • 87427352 - SWITCH
  • Ride Control

10 87527964

  • 87527964 - ADAPTER
  • Handle
  • Pilot Controls

11 87382929

  • 87382929 - WIRE CONNECTOR
  • Male
  • 14 Cavities
  • 14 Way
  • Male

12 256346A1

  • 256346A1 - CONNECTOR
  • ELEC
  • 4 Way
  • Female

13 87693821

  • 87693821 - ELEC CONNECTOR
  • Female
  • 2 Cavities
