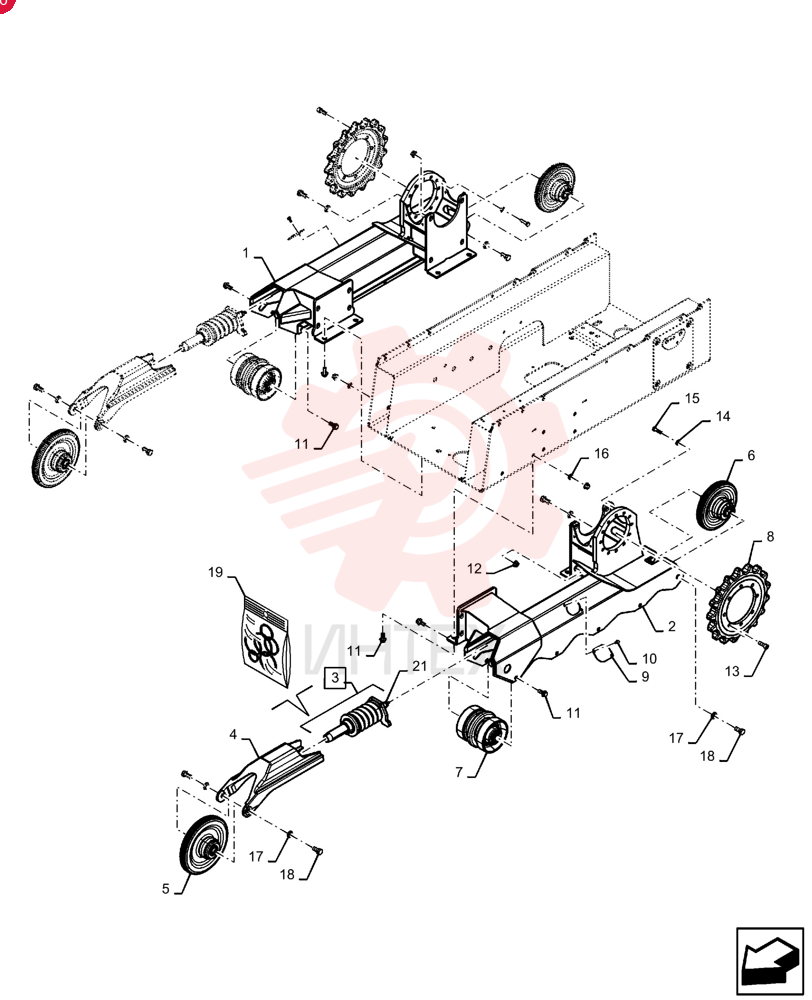

FRAME 47720070

FRAME 47720070

FRAME 47720070

1 47720070

  • 47720070 - FRAME
  • RH
  • Gray

2 47720064

  • 47720064 - FRAME
  • LH
  • Gray

3 47620837

  • 47620837 - TENSIONER
  • Spring
  • Incl 20

4 47630196

  • 47630196 - YOKE
  • Front Idler

5 47620836

  • 47620836 - IDLER
  • Front

6 47378988

  • 47378988 - IDLER
  • 290mm OD
  • Rear

7 47378992

  • 47378992 - TRACK ROLLER
  • 214mm OD x 228.3mm L

8 47378993

  • 47378993 - SPROCKET
  • 17T

9 47630237

  • 47630237 - PLATE
  • Cover

10 9804258

  • 9804258 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

11 87495304

  • 87495304 - FLANGE BOLT
  • M6 x 55.4mm
  • Cl 10.9

12 86512498

  • 86512498 - FLANGE NUT
  • M16 x 2
  • Cl 10

13 87619750

  • 87619750 - HEX SOC SCREW
  • M16 x 2 x 45mm
  • Cl 12.9

14 87016615

  • 87016615 - WASHER
  • 15.3mm ID x 28.5mm OD x 3mm Thk

15 87316174

  • 87316174 - BOLT
  • Hex
  • M14 x 50mm
  • Cl 10.9

16 86625266

  • 86625266 - WASHER
  • 17.5mm ID x 30mm OD x 4mm Thk

17 87655047

  • 87655047 - SPECIAL WASHER
  • 21.25mm ID x 38.10mm OD x 4.20mm Thk

18 9512573

  • 9512573 - BOLT
  • Hex
  • M20 x 2.5 x 40mm
  • Cl 10.9
  • Full Thd

19 47428174

  • 47428174 - SEAL KIT
  • Services 3

20 321204

  • 321204 - LUBE NIPPLE
  • M6 x 1.0 x 16mm OAL

21 47896347

  • 47896347 - SERVICE KIT
  • Valve
  • Services 3
