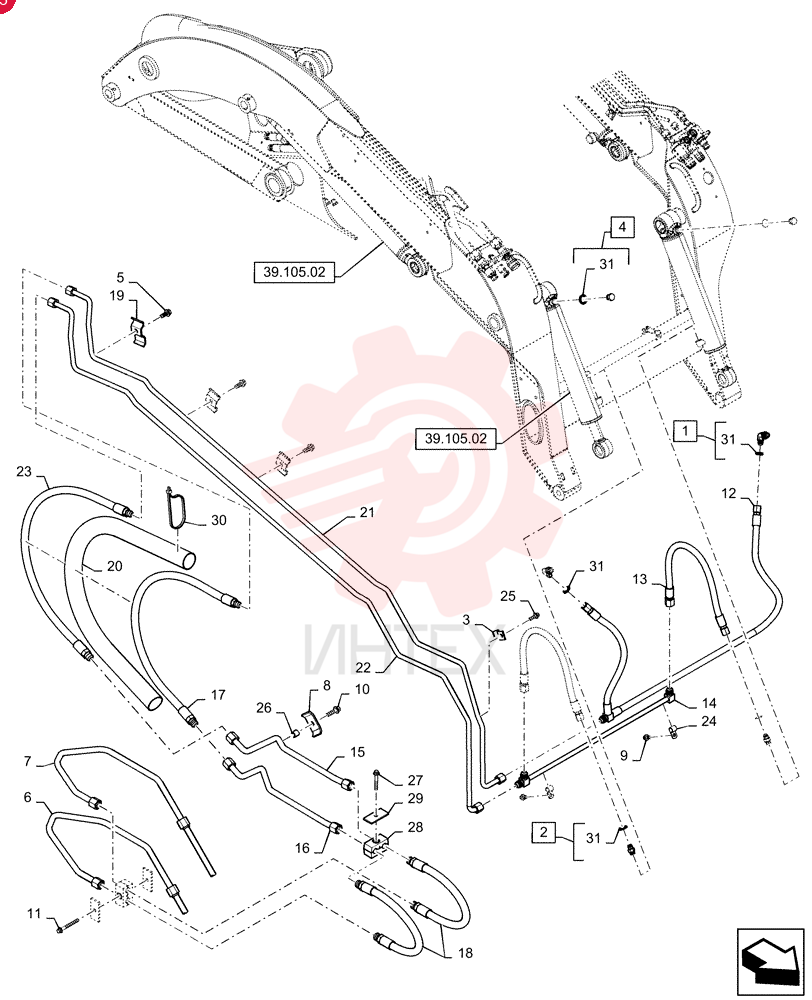

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB
1 76347
- 76347 - ELBOW
- 90 Degree
- 9/16" - 18 JIC x 3/4" - 16 ORB
- Incl 31
2 128817
- 128817 - HYD CONNECTOR
- 3/4" - 16 ORB x 9/16" - 18 JIC
- Incl 31
3 184064
- 184064 - CLIP
- 12.7mm ID
- 8.73mm Bolt Hole
- J Type
4 214389
- 214389 - PLUG
- 3/4" - 16 ORB
- Incl 31
5 280476
- 280476 - SELF-TAP SCREW
- HWH
- 3/8"-16 x 1"
6 47505011
- 47505011 - HYD TUBE
- Tip
- RH Tower
7 47505013
- 47505013 - HYD TUBE
- Tip
- RH Tower
8 84254045
- 84254045 - CLAMP
- 66mm L
9 84285339
- 84285339 - SELF-TAP SCREW
- Hex
- M8 x 1.25 x 15mm
10 84285342
- 84285342 - SELF-TAP SCREW
- Hex Flng Hd
- M10 x 1.5 x 35mm
11 84323488
- 84323488 - SELF-TAP SCREW
- Hex Flg
- M8 x 70mm
12 84346682
- 84346682 - HOSE ASSY.
- 9.53mm ID x 1457mm L
- SAE 100R17
13 84346755
- 84346755 - HOSE ASSY.
- 9.53mm ID x 568mm L
- SAE 100R16
- Tip Cyl Rod
14 84346785
- 84346785 - HYD TUBE
- Tip Crossover
15 84356471
- 84356471 - HYD TUBE
- Tip Cyl Lower Link
16 84356473
- 84356473 - HYD TUBE
- Tip Cyl Lower Link
17 84356590
- 84356590 - HYDRAULIC HOSE
- 12.7mm ID x 981mm L
- SAE 100R16
- Tip Cyl Upper
18 84356593
- 84356593 - HYDRAULIC HOSE
- 12.7mm ID x 561mm L
- SAE 100R16
- Tip Cyl Lower
19 84356597
- 84356597 - CLAMP
- Butterfly Tube
20 84362109
- 84362109 - HOSE PROTECTION
- 46mm ID x 50mm OD x 1070mm L
- Hose
21 84533283
- 84533283 - HYD TUBE
- Tip Cyl Arm
22 84533285
- 84533285 - HYD TUBE
- Tip Cyl Arm
23 84533287
- 84533287 - HYDRAULIC HOSE
- 12.7mm ID x 921mm L
- SAE 100R16
- Tip Cyl Upper
24 86625036
- 86625036 - CLAMP
- 12.7mm
- Coat
- 8.7mm Bolt Hole
- P Type
25 87016557
- 87016557 - SELF-TAP SCREW
- Hex
- M8 x 1.25 x 25mm
26 87340800
- 87340800 - SPACER
- 5/8" Tube x 15.88mm
27 87582902
- 87582902 - SELF-TAP SCREW
- Hex
- M8 x 1.25 x 55mm
28 1546026C1
- 1546026C1 - CLAMP
29 257859A1
- 257859A1 - PLATE
- SPACER
- 31.8mm W x 68mm L x 4.76mm Thk
- Clamp Top
30 L18331
- L18331 - CABLE TIE
- 375.9mm L
- Nylon
31 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
