New Holland Construction
/
(C238) - COMPACT TRACK LOADER - TIER 4A (7/12-)
/

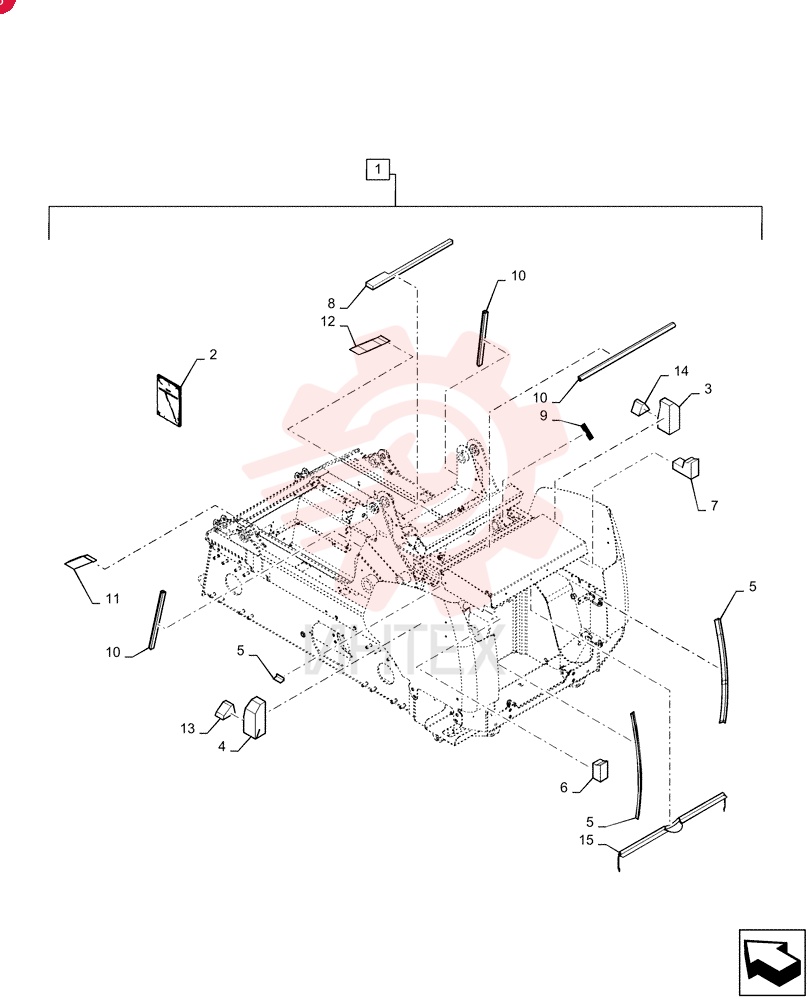

KIT 47382679

KIT 47382679

KIT 47382679

1 47382679

  • 47382679 - KIT
  • Debris Soft Parts
  • Incl 2 - 15

2 47643312

  • 47643312 - INSTRUCTION
  • Installation

3 47365482

  • 47365482 - FOAM INSULATION
  • Fender Filler
  • RH

4 47365484

  • 47365484 - FOAM INSULATION
  • Fender Filler
  • LH

5 47365894

  • 47365894 - SEAL
  • Adhesive

6 47377967

  • 47377967 - FOAM INSULATION
  • LH

7 47377968

  • 47377968 - FOAM INSULATION
  • RH

8 47382475

  • 47382475 - FOAM INSULATION
  • Cross Member

9 47383241

  • 47383241 - FOAM INSULATION
  • 30480mm L
  • Seal
  • Bulb

10 84338534

  • 84338534 - SEAL
  • Bulk 30.48 m
  • Bulk

11 84494851

  • 84494851 - FOAM INSULATION
  • LH
  • Front Plate

12 84494871

  • 84494871 - FOAM INSULATION
  • RH
  • Front Plate

13 84598220

  • 84598220 - FOAM INSULATION
  • Hood
  • LH

14 84598643

  • 84598643 - FOAM INSULATION
  • Hood
  • RH

15 84602176

  • 84602176 - SEAL
  • Bulb
