(CV2500) - VIBRATORY ROLLER
/

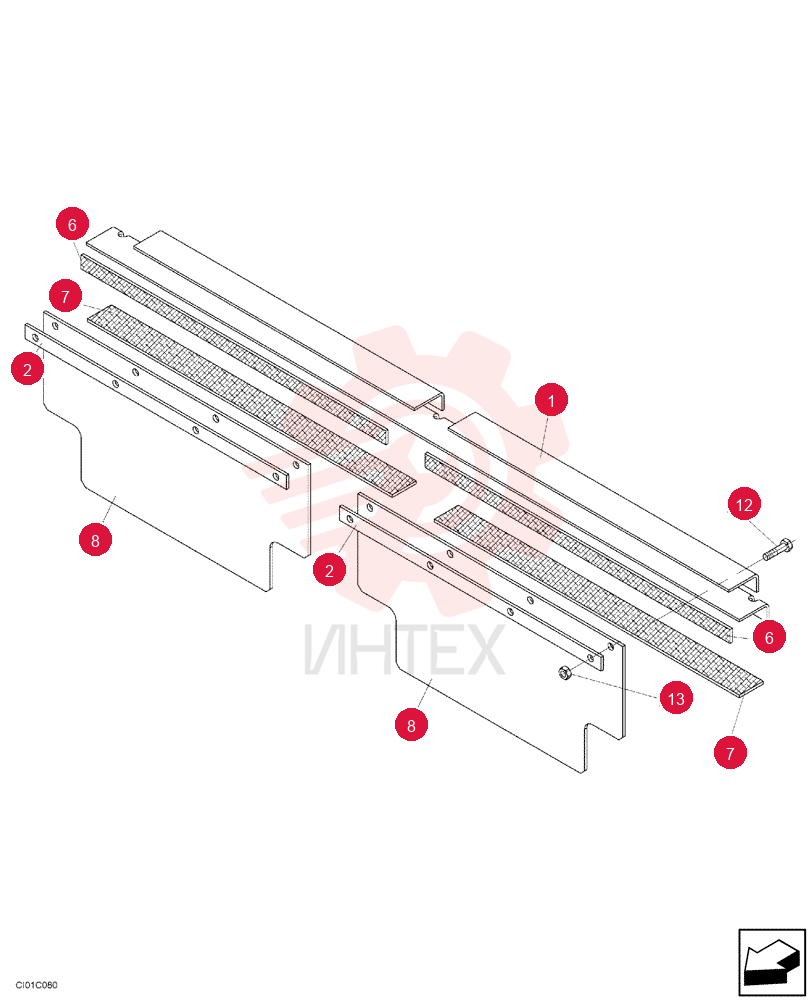

SUPPORT ND018497

SUPPORT ND018497

SUPPORT ND018497

1 ND018497

  • ND018497 - SUPPORT

2 ND031686

  • ND031686 - CAP

3 ND075709

  • ND075709 - RUBBER PAD
  • 3 x 15 x 380

4 ND076142

  • ND076142 - RUBBER PAD
  • 3 x 30 x 380

5 ND031684

  • ND031684 - COVER

6 ND023800

  • ND023800 - SCREW
  • M6 x 14

7 ND021847

  • ND021847 - NUT
  • M6
