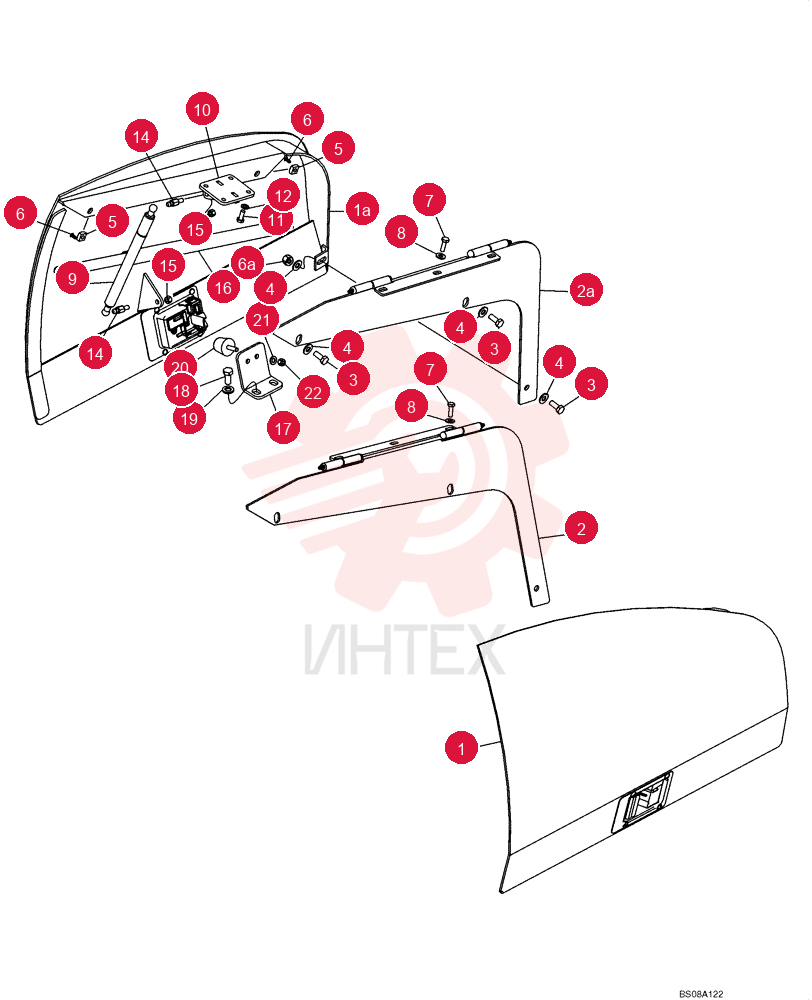

DOOR ASSY. 87355469
1 87355469
- 87355469 - DOOR ASSY.
- Right-Hand
- Incl. Ref 1
- 2
- 3 - 6A
- Also Includes 87353954 Latch
- (4) 151-567 1/4 x 5/8 Rivets
- Replaces 87355469
2 87355470
- 87355470 - DOOR ASSY.
- Left-Hand
- Incl. Ref 1A
- 2A - 6A
- Also Includes 87353954 Latch
- (4) 151-567 1/4 x 5/8 Rivets
- Replaces 87355470
3 87353954
- 87353954 - LATCH
- Door
4 151-567
- 151-567 - RIVET
- Pop
- 1/4" x .625"
5 NSS
- NSS - NOT SERVICED SEPARATELY
- Door
- Right-Hand
6 NSS
- NSS - NOT SERVICED SEPARATELY
- Door
- Left-Hand
7 87758116
- 87758116 - HINGE
- Door
- Right-Hand
- Replaces 87758116 Hinge R.H. Used On Some Models
- Replaces 414382A4
8 87758118
- 87758118 - HINGE
- Door
- Left-Hand
- Replaces 87758118 Hinge L.H. Used On Some Models
- Replaces 414384A4
9 627-10025
- 627-10025 - BOLT
- Hex
- M10 x 1.5 x 25mm
- Cl 10.9
- Full Thd
10 895-25010
- 895-25010 - WASHER
- M11 x 30 x 2.5
11 122958A1
- 122958A1 - SQUARE NUT
- M10
12 336371A1
- 336371A1 - PIN
- Nut Retainer
13 832-10410
- 832-10410 - NUT
- M10 x 1.5
- Cl 8
14 627-8025
- 627-8025 - BOLT
- Hex
- M8 x 1.25 x 25mm
- Cl 10.9
- Full Thd
15 895-15008
- 895-15008 - WASHER
- M8 x 20 x 1.6
16 87403799
- 87403799 - SPRING
- Gas
- Includes Integral Spring Clip Retainer
17 411339A1
- 411339A1 - MOUNTING PARTS
18 627-8030
- 627-8030 - BOLT
- Hex
- M8 x 1.25 x 30mm
- Cl 10.9
- Full Thd
19 895-11008
- 895-11008 - WASHER
- M8 x 16 x 1.6
20 109498A1
- 109498A1 - STUD
21 231-1445
- 231-1445 - NUT
- 5/16"-18
- GB
22 86990971
- 86990971 - HANDLE
- Hydraulic Pump
- Cab/Canopy Tilt
- Door
- Left-Hand
23 87434237
- 87434237 - PLATE
- Door Latch
24 614-12025
- 614-12025 - BOLT
- Hex
- M12 x 1.75 x 25mm
- Cl 8.8
- Full Thd
25 896-11012
- 896-11012 - WASHER
- 13.5mm ID x 24mm OD x 3mm Thk
26 87330642
- 87330642 - BUMPER
- 28 mm Stud Length
27 495-11034
- 495-11034 - WASHER
- 5/16"
- SAE
28 231-2445
- 231-2445 - LOCK NUT
- 5/16"-24
- GB
