New Holland Construction
/
(DC150PS) - CRAWLER DOZER
/

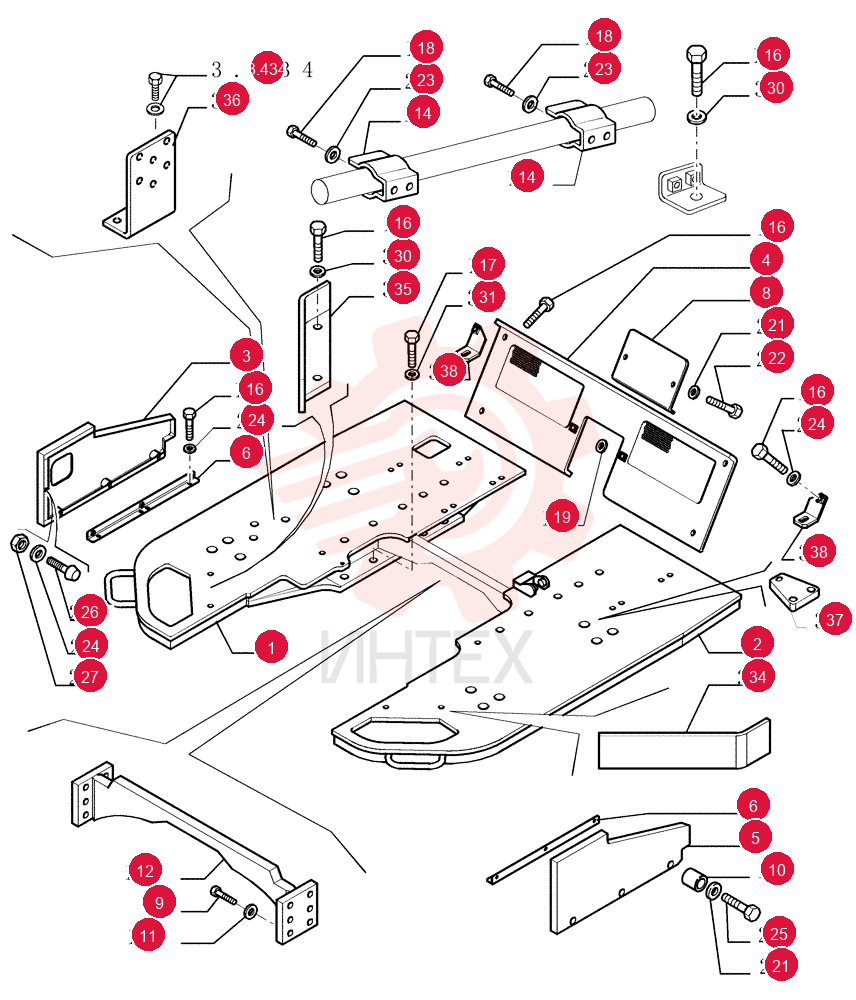

SUPPORT 76074959

SUPPORT 76074959

SUPPORT 76074959

1 76074959

  • 76074959 - SUPPORT

2 76074960

  • 76074960 - SUPPORT

3 76076840

  • 76076840 - SIDE PANEL

4 76075398

  • 76075398 - GUARD

5 76076839

  • 76076839 - SIDE PANEL

6 76054649

  • 76054649 - SUPPORT

7 76076827

  • 76076827 - COVER

8 15840531

  • 15840531 - BOLT
  • Hex
  • M16 x 1.5 x 50mm
  • Cl 10.9
  • Full Thd

9 79082633

  • 79082633 - SPACER

10 14496931

  • 14496931 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

11 76080526

  • 76080526 - CROSSRAIL

12 79106820

  • 79106820 - SPRING

13 11106231

  • 11106231 - BOLT
  • Hex
  • M10 x 1.5 x 25mm
  • Cl 10.9

14 16261331

  • 16261331 - SCREW
  • M22

15 10977531

  • 10977531 - BOLT
  • Hex
  • M5 x 10mm
  • Cl 10.9
  • Full Thd

16 16100821

  • 16100821 - NUT
  • M8
  • Cl 10

17 14496531

  • 14496531 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

18 16043431

  • 16043431 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

19 10615479

  • 10615479 - LOCK WASHER
  • 6.4mm ID x 11mm OD x 0.7mm Thk

20 14496631

  • 14496631 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

21 16044131

  • 16044131 - BOLT
  • Hex
  • M8 x 45mm
  • Cl 10.9

22 591420

  • 591420 - PAD

23 10791021

  • 10791021 - THIN NUT
  • Thin
  • M10 x 1.25
  • Cl 05

24 12626231

  • 12626231 - WASHER
  • 10.2mm ID x 25mm OD x 3mm Thk

25 14497231

  • 14497231 - WASHER

26 76076836

  • 76076836 - GUARD

27 76076837

  • 76076837 - GUARD

28 76078177

  • 76078177 - SUPPORT

29 76076938

  • 76076938 - SPACER

30 76076820

  • 76076820 - SUPPORT

31 76076821

  • 76076821 - SUPPORT
