(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02346 (N5TA18048) (NA) (1/06-)
/

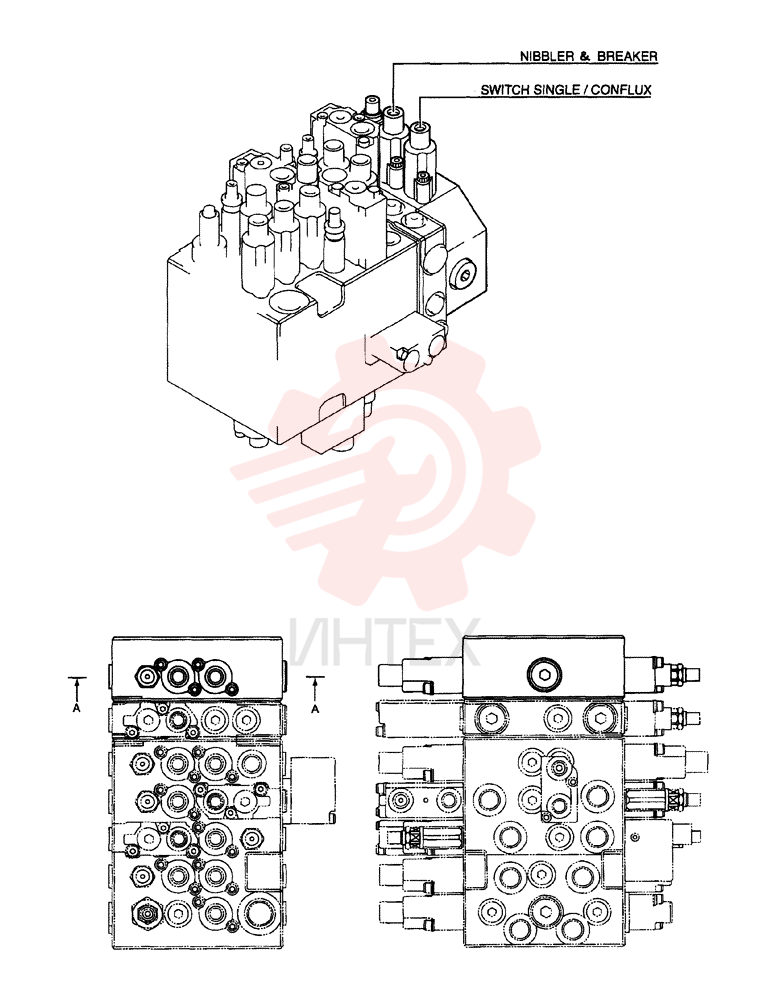

VALVE YT30V00017F1 (1)

VALVE YT30V00017F1 (1)

VALVE YT30V00017F1 (1)

1 YT30V00017F1

  • YT30V00017F1 - VALVE
  • CONTROL (NIBBLER & BREAKER) Includes Figures 205
  • 206

2 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BODY

3 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

4 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

5 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SEAT
  • SPRING

6 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPRING

7 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BOLT
  • SPACER

8 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SEAT
  • SPRING

9 YT30V00001S020

  • YT30V00001S020 - PLUG

10 YT30V00001S021

  • YT30V00001S021 - CHECK VALVE

11 YT30V00001S022

  • YT30V00001S022 - SPRING

12 YR30V00001S115

  • YR30V00001S115 - PLUG
  • PLUG

13 YT30V00001S018

  • YT30V00001S018 - COVER

14 PH30V00009S011

  • PH30V00009S011 - COVER

15 PH30V00009S019

  • PH30V00009S019 - CAPSCREW
  • SCREW

16 PH30V00009S007

  • PH30V00009S007 - O-RING

17 ZD12P01500

  • ZD12P01500 - O-RING

18 ZD12P01800

  • ZD12P01800 - O-RING

19 2436U1317S13

  • 2436U1317S13 - PLUG

20 ZD12P01100

  • ZD12P01100 - O-RING

21 YT22V00004F1

  • YT22V00004F1 - VALVE
  • OVERLORD RELIEF See Figure 203

22 YT30V00010R100

  • YT30V00010R100 - SWITCH
  • SINGLE SWITCH CONFLUENCE SPOOL KIT (SPOOL+SPRING) CONSISTS OF ITEM 2X1
  • 4X1
  • 5X1
  • 6X1
  • 7X1

23 YT30V00010R110

  • YT30V00010R110 - REPAIR KIT
  • NUBBLER & BREAKER SPOOL KIT (SPOOL+SPRING) CONSISTS OF ITEM 3X1
  • 4X1
  • 5X1
  • 6X1
  • 7X1

24 YT30V00017F1

  • YT30V00017F1 - VALVE
  • CONTROL (NIBBLER & BREAKER) Includes Figures 205
  • 206

25 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BODY

26 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

27 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPOOL

28 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SEAT
  • SPRING

29 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SPRING

30 NSS

  • NSS - NOT SERVICED SEPARATELY
  • BOLT
  • SPACER

31 NSS

  • NSS - NOT SERVICED SEPARATELY
  • SEAT
  • SPRING

32 YT30V00001S020

  • YT30V00001S020 - PLUG

33 YT30V00001S021

  • YT30V00001S021 - CHECK VALVE

34 YT30V00001S022

  • YT30V00001S022 - SPRING

35 YR30V00001S115

  • YR30V00001S115 - PLUG
  • PLUG

36 YT30V00001S018

  • YT30V00001S018 - COVER

37 PH30V00009S011

  • PH30V00009S011 - COVER

38 PH30V00009S019

  • PH30V00009S019 - CAPSCREW
  • SCREW

39 PH30V00009S007

  • PH30V00009S007 - O-RING

40 ZD12P01500

  • ZD12P01500 - O-RING

41 ZD12P01800

  • ZD12P01800 - O-RING

42 2436U1317S13

  • 2436U1317S13 - PLUG

43 ZD12P01100

  • ZD12P01100 - O-RING

44 YT22V00004F1

  • YT22V00004F1 - VALVE
  • OVERLORD RELIEF See Figure 203

45 YT30V00010R100

  • YT30V00010R100 - SWITCH
  • SINGLE SWITCH CONFLUENCE SPOOL KIT (SPOOL+SPRING) CONSISTS OF ITEM 2X1
  • 4X1
  • 5X1
  • 6X1
  • 7X1

46 YT30V00010R110

  • YT30V00010R110 - REPAIR KIT
  • NUBBLER & BREAKER SPOOL KIT (SPOOL+SPRING) CONSISTS OF ITEM 3X1
  • 4X1
  • 5X1
  • 6X1
  • 7X1
