New Holland Construction
/
(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-)
/

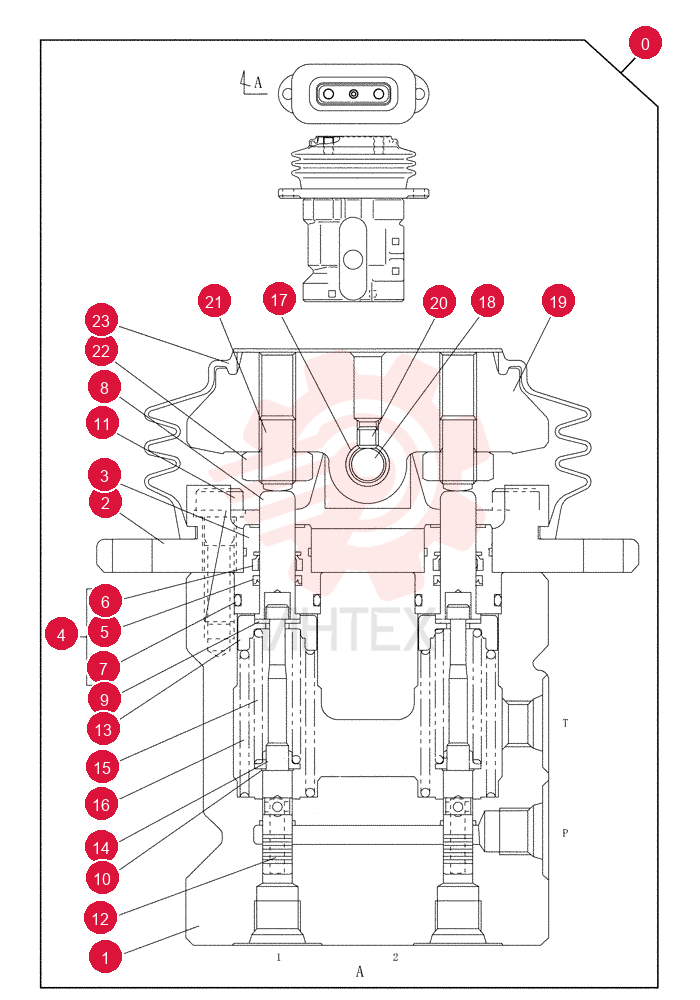

CONTROL BLOCK KRJ5864 (1)

CONTROL BLOCK KRJ5864 (1)

CONTROL BLOCK KRJ5864 (1)

1 KRJ5864

  • KRJ5864 - CONTROL BLOCK

2 NSS

  • NSS - NOT SERVICED SEPARATELY
  • Housing

3 160308A1

  • 160308A1 - COVER

4 160055A1

  • 160055A1 - PLUG

5 160130A1

  • 160130A1 - SEAL KIT

6 CDP0818

  • CDP0818 - OIL SEAL

7 160014A1

  • 160014A1 - SCRAPER

8 154491A1

  • 154491A1 - O-RING

9 160023A1

  • 160023A1 - THREADED ROD

10 LA00056

  • LA00056 - WASHER

11 LA00057

  • LA00057 - SET OF WASHERS

12 160284A1

  • 160284A1 - BOLT
  • Hex Skt

13 NSS

  • NSS - NOT SERVICED SEPARATELY
  • Spool

14 160232A1

  • 160232A1 - SPRING SEAT

15 160283A1

  • 160283A1 - WASHER

16 LG00331

  • LG00331 - COMPRESSION SPRING

17 160250A1

  • 160250A1 - SPRING

18 160035A1

  • 160035A1 - BUSHING

19 160022A1

  • 160022A1 - SHAFT

20 160090A1

  • 160090A1 - CAM

21 LUC0103

  • LUC0103 - SCREW

22 160282A1

  • 160282A1 - SCREW

23 160281A1

  • 160281A1 - LOCK NUT

24 160001A1

  • 160001A1 - BELLOWS
