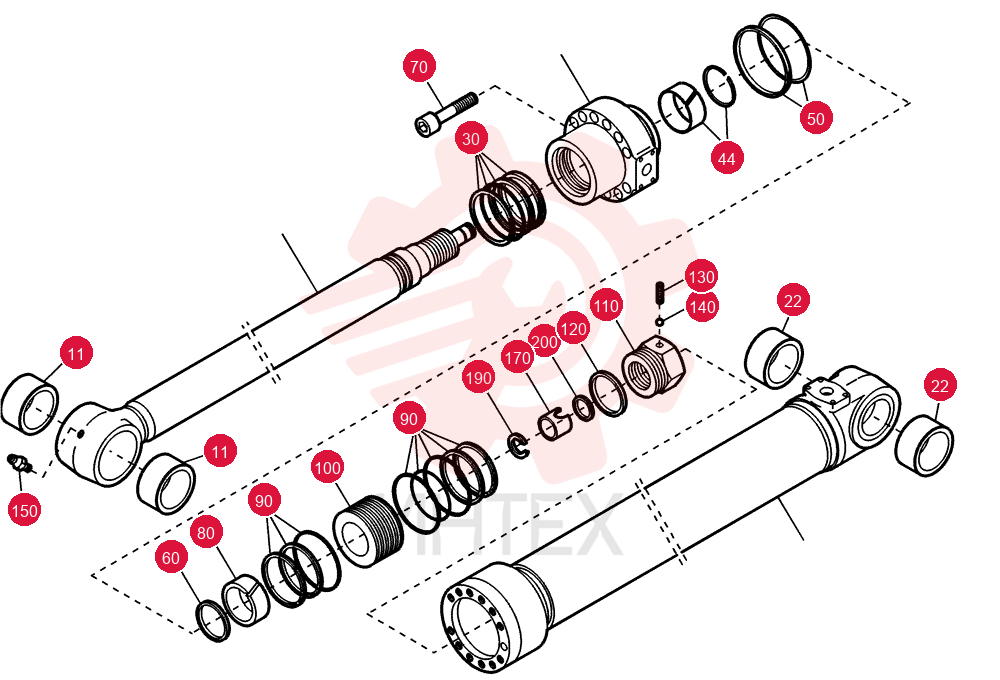

CYLINDER 71469222
1 71469222
- 71469222 - CYLINDER
2 71469223
- 71469223 - ROD
- PISTON ROD
3 71470122
- 71470122 - BUSHING
4 71469227
- 71469227 - BARREL
- CYLINDER LINER
5 71470122
- 71470122 - BUSHING
6 71465022
- 71465022 - SEAL
- PACKET SEAL
7 71469234
- 71469234 - BASE PLATE
- GUIDE
8 71447902
- 71447902 - SEAL
- GASKET
9 71418539
- 71418539 - SEALING RING
- GASKET
10 71470112
- 71470112 - SEAL
11 14432774
- 14432774 - HEX SOC SCREW
- M20 x 2.5 x 80mm
- 12.9
12 71448000
- 71448000 - BUSHING
13 71418542
- 71418542 - SEAL KIT
- PACKET SEAL
14 71469237
- 71469237 - PISTON
15 71469238
- 71469238 - NUT
16 71448003
- 71448003 - WASHER
- SPACER SLEEVE
17 71445657
- 71445657 - DOWEL
- M14 x 2 x 14mm
- STUD
18 71445658
- 71445658 - BALL
19 13407811
- 13407811 - LUBE NIPPLE
- Angled - 45°
- M10 x 1 x 27.00mm
- GREASE NIPPLE
20 71469239
- 71469239 - BUSHING
- 46mm ID x 60mm OD x 47mm L
21 71469240
- 71469240 - STOP
- LIMIT STOP
22 71470111
- 71470111 - RING
