New Holland Construction
/
(EC350) - CRAWLER EXCAVATOR (2/00-)
/

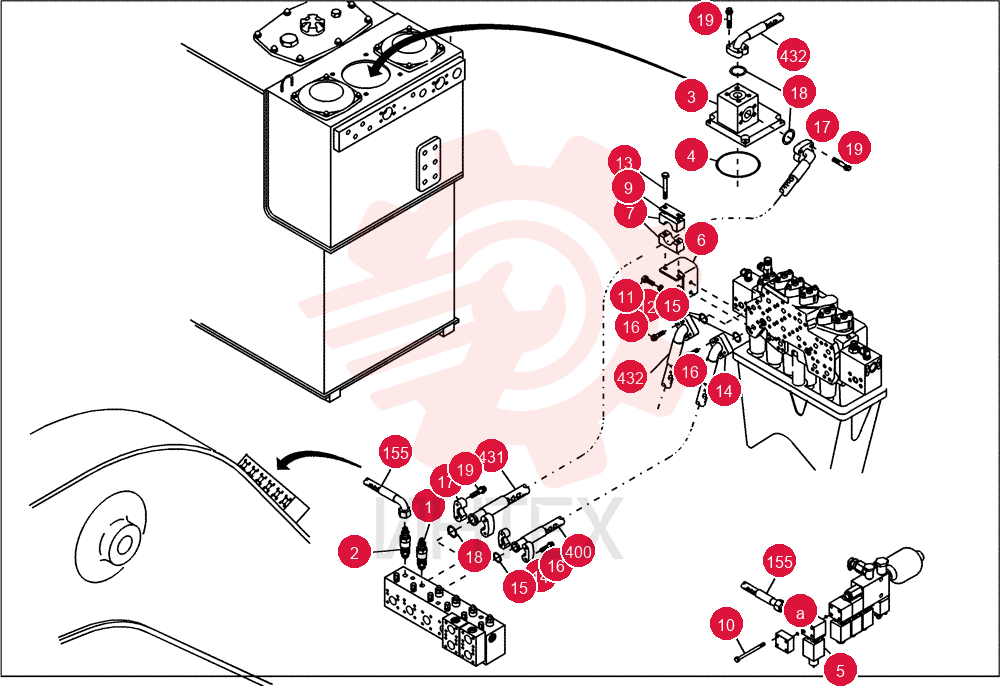

HYDRAULIC VALVE 73173605 (1)

HYDRAULIC VALVE 73173605 (1)

HYDRAULIC VALVE 73173605 (1)

1 73173605

  • 73173605 - HYDRAULIC VALVE
  • VALVE

2 73176472

  • 73176472 - HYDRAULIC VALVE
  • VALVE

3 73176465

  • 73176465 - HYDRAULIC VALVE
  • VALVE

4 73171650

  • 73171650 - O-RING

5 NS

  • NS - NOT SERVICED
  • VALVE INTERCONN. MOUNTING PARTS SEE FIGURE 23.241/001

6 73187678

  • 73187678 - BRACKET

7 73187687

  • 73187687 - CLAMP
  • CLIP

8 73180382

  • 73180382 - COVER
  • PLATE

9 73176464

  • 73176464 - BOLT
  • Hex
  • M6 x 170
  • 8.8
  • HEXAGON BOLT

10 73170316

  • 73170316 - BOLT
  • Hex
  • M12 x 25
  • 8.8
  • HEXAGON BOLT

11 73170169

  • 73170169 - WASHER
  • DISK/WASHER

12 72181081

  • 72181081 - BOLT
  • Hex
  • M12 x 130
  • 8.8
  • HEXAGON BOLT

13 73170326

  • 73170326 - FLANGE
  • SAE-FLANGE HALF

14 73170327

  • 73170327 - RING
  • SEALING RING

15 73170328

  • 73170328 - SCREW
  • 12-POINT SCREW

16 73170344

  • 73170344 - SPARE PART
  • SAE-FLANGE HALF

17 73170346

  • 73170346 - O-RING
  • SEALING RING

18 73170347

  • 73170347 - 12 PT SCREW
  • 12-POINT SCREW

19 73187682

  • 73187682 - FLEXIBLE HOSE
  • HOSE

20 73187680

  • 73187680 - FLEXIBLE HOSE
  • HOSE

21 73188508

  • 73188508 - FLEXIBLE HOSE
  • HOSE

22 73187684

  • 73187684 - FLEXIBLE HOSE
  • HOSE
