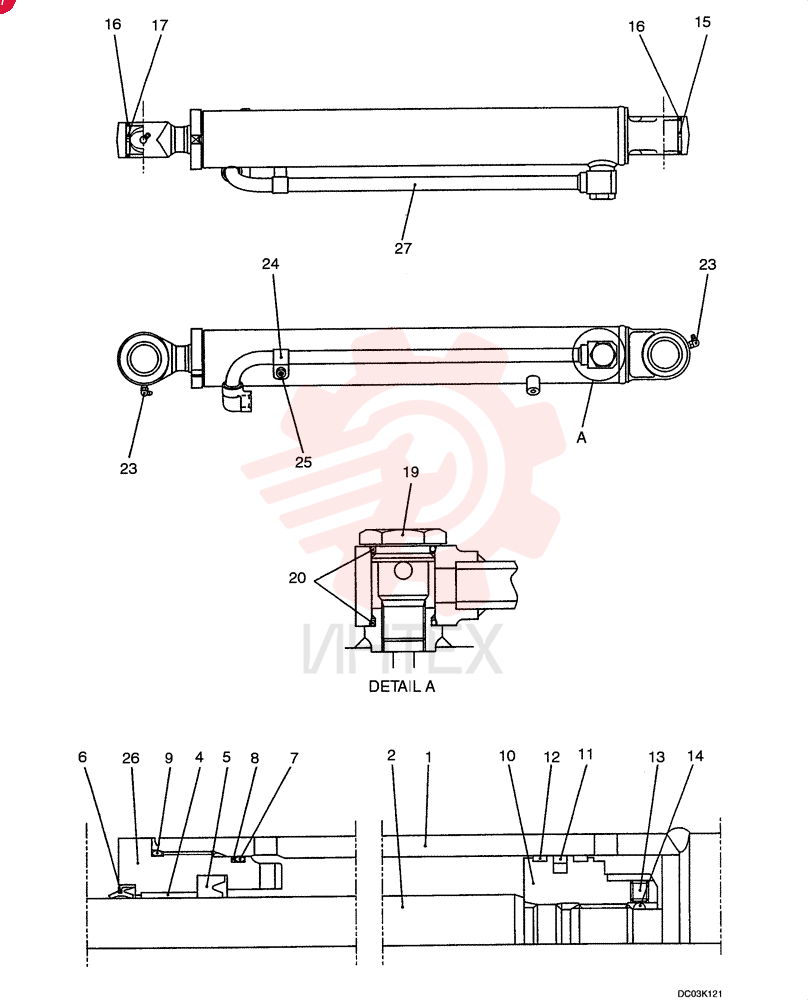

CYLINDER ASSY. PH01V00016F3
1 PH01V00016F3
- PH01V00016F3 - CYLINDER ASSY.
- Bucket Incl. 1 - 27
2 NSS
- NSS - NOT SOLD SEPARAT
- Tube
- Cylinder
3 NSS
- NSS - NOT SOLD SEPARAT
- Rod
- Piston
4 PX01V00012S004
- PX01V00012S004 - BUSHING
5 2438U477S6
- 2438U477S6 - RING
6 PH01V00004S006
- PH01V00004S006 - WIPER
7 ZD12G07000
- ZD12G07000 - O-RING
- 69.40mm ID x 75.60mm OD x 3.10mm
8 PH01V00016S008
- PH01V00016S008 - BACK-UP RING
9 ZD11G07500
- ZD11G07500 - O-RING
- 74.40mm ID x 80.60mm OD x 3.10mm
10 PH01V00016S010
- PH01V00016S010 - PISTON
11 2438U816S19
- 2438U816S19 - RING
12 PH01V00016S012
- PH01V00016S012 - RING
13 2438U1057S16
- 2438U1057S16 - SET SCREW
14 2436U946S11
- 2436U946S11 - BALL
15 PW01V01086D1
- PW01V01086D1 - BUSHING
16 2438U1163S25
- 2438U1163S25 - SEAL
17 2438U496S3
- 2438U496S3 - BUSHING
18 PH01V00014S024
- PH01V00014S024 - PLUG
19 ZD12P02600
- ZD12P02600 - O-RING
20 ZG91U02000
- ZG91U02000 - LUBE NIPPLE
21 PY01V00030S031
- PY01V00030S031 - HOLDER
22 LF01V00002S034
- LF01V00002S034 - BOLT
23 PH01V00016S026
- PH01V00016S026 - CYLINDER HEAD
- CYLINDER HEAD
24 PH01V00016S027
- PH01V00016S027 - TUBE ASSY.
- PIPE ASSY.
25 PH01V00016R300
- PH01V00016R300 - REPAIR KIT
- Incl. 5 - 9
- 11
- 12
26 PH01V00016R400
- PH01V00016R400 - REPAIR KIT
- Incl. 1
- 15
27 PH01V00016R500
- PH01V00016R500 - REPAIR KIT
- Incl. 2
- 17
