(EH45) - MINI CRAWLER EXCAVATOR (3/04-)
/

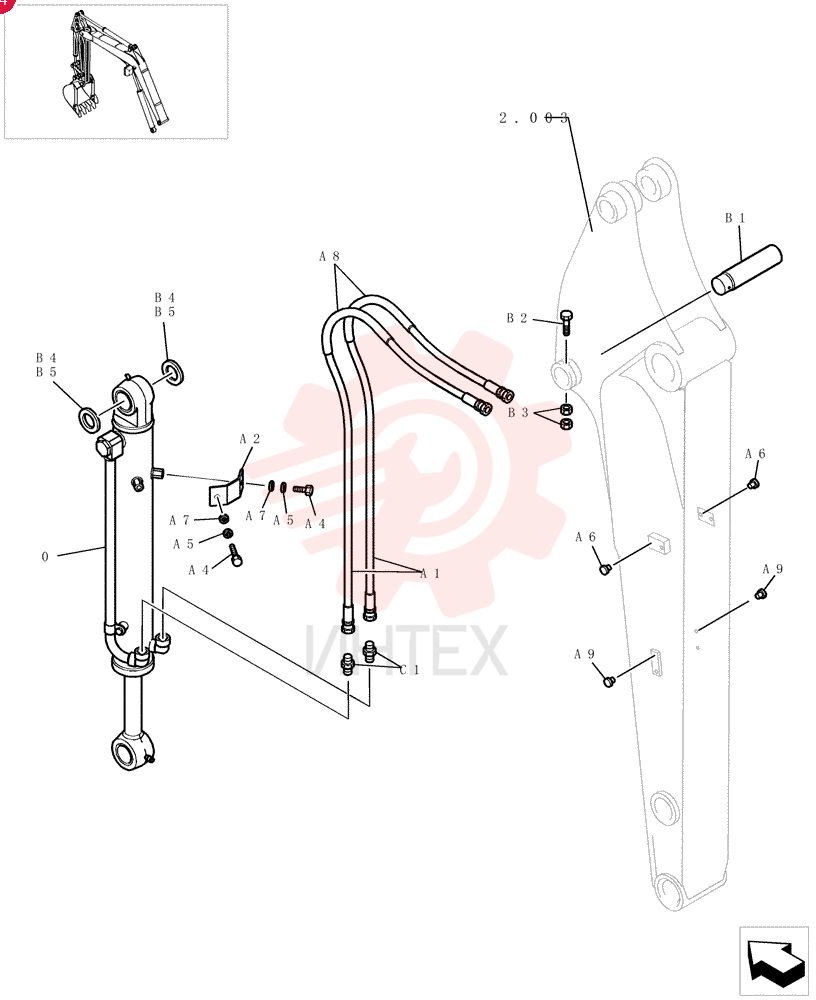

CYLINDER 72288073 (2)

CYLINDER 72288073 (2)

CYLINDER 72288073 (2)

1 72288073

  • 72288073 - CYLINDER
  • - ASSY SEE PAGE 3

2 YJ42H01133DC

  • YJ42H01133DC - HOSE ASSY.

3 72288170

  • 72288170 - CLAMP

4 72951685

  • 72951685 - SCREW

5 ZW26X08000

  • ZW26X08000 - LOCK WASHER

6 PV02B01073D2

  • PV02B01073D2 - CAP

7 ZW16H08000

  • ZW16H08000 - WASHER
  • ID 08 x OD 18 x Th 3.2mm

8 72952921

  • 72952921 - GUARD

9 PV02B01073D4

  • PV02B01073D4 - CAP

10 72288120

  • 72288120 - PIN

11 HS18C12090G1

  • HS18C12090G1 - SCREW

12 72951658

  • 72951658 - NUT

13 72953299

  • 72953299 - SHIM
  • 47mm ID x 70mm OD x 0.5mm Thk

14 72952958

  • 72952958 - SHIM
  • 47mm ID x 70mm OD x 0.9mm Thk

15 HH25S08008G1

  • HH25S08008G1 - HYD CONNECTOR
