(EH80) - MIDI CRAWLER EXCAVATOR ASN LF04-02000 (N4TA18001 thru N4TA18010, ASN N5TA18011 -) (NA) (1/05-)
/

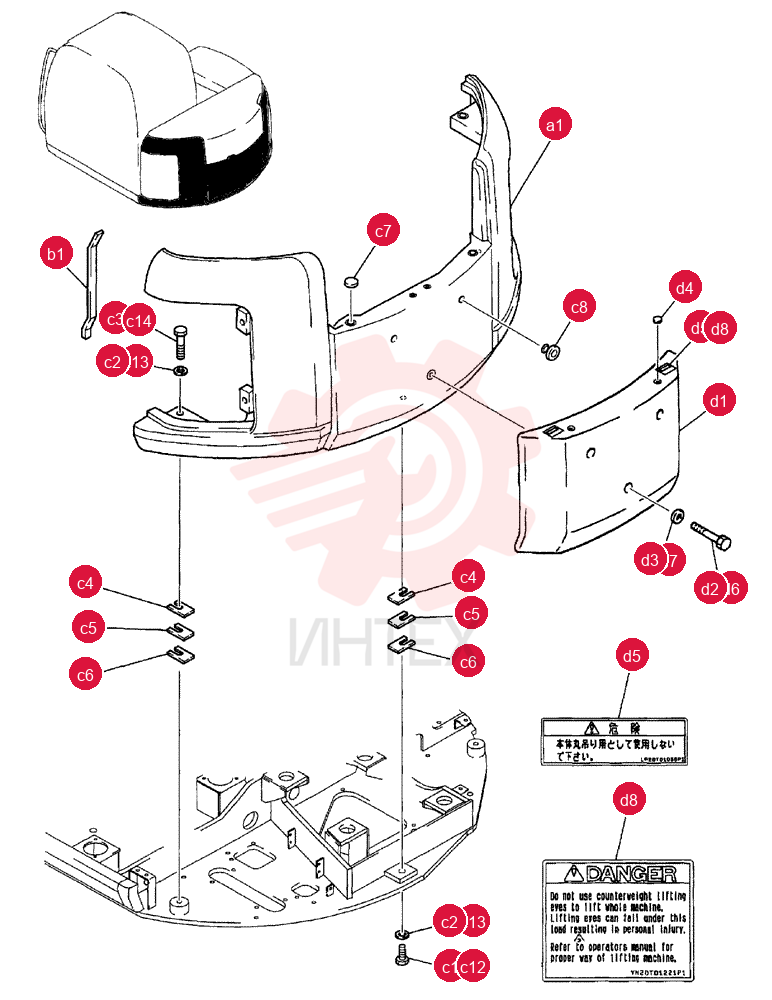

COUNTERWEIGHT YT60C00008P1

COUNTERWEIGHT YT60C00008P1

COUNTERWEIGHT YT60C00008P1

1 YT60C00008P1

  • YT60C00008P1 - COUNTERWEIGHT

2 YT60C01004D1

  • YT60C01004D1 - RUBBER

3 NSS

  • NSS - NOT SERVICED SEPARATELY

4 NSS

  • NSS - NOT SERVICED SEPARATELY

5 NSS

  • NSS - NOT SERVICED SEPARATELY

6 YT60C01006D1

  • YT60C01006D1 - SHIM
  • 3.2mm Thk
  • (3.2)

7 YT60C01006D2

  • YT60C01006D2 - SHIM
  • 20.mm Thk
  • (2.0)

8 YT60C01006D3

  • YT60C01006D3 - SHIM
  • 1.0mm Thk
  • (1.0)

9 LE60C01028P1

  • LE60C01028P1 - PLATE

10 YT60C01007P1

  • YT60C01007P1 - PLUG

11 HS18C20075G1

  • HS18C20075G1 - SCREW

12 HY26Y21050G4

  • HY26Y21050G4 - WASHER

13 HS18C20135G1

  • HS18C20135G1 - BOLT

14 YT60C00006P1

  • YT60C00006P1 - COUNTERWEIGHT

15 NSS

  • NSS - NOT SERVICED SEPARATELY

16 NSS

  • NSS - NOT SERVICED SEPARATELY

17 LE60C01028P1

  • LE60C01028P1 - PLATE

18 NSS

  • NSS - NOT SERVICED SEPARATELY

19 HS18C20145G3

  • HS18C20145G3 - SCREW

20 HY26Y21050G4

  • HY26Y21050G4 - WASHER

21 YN20T01221P1

  • YN20T01221P1 - DANGER DECAL
  • Decal
  • Danger
  • Do not use counterweight lifting eyes to lift whole machine.
