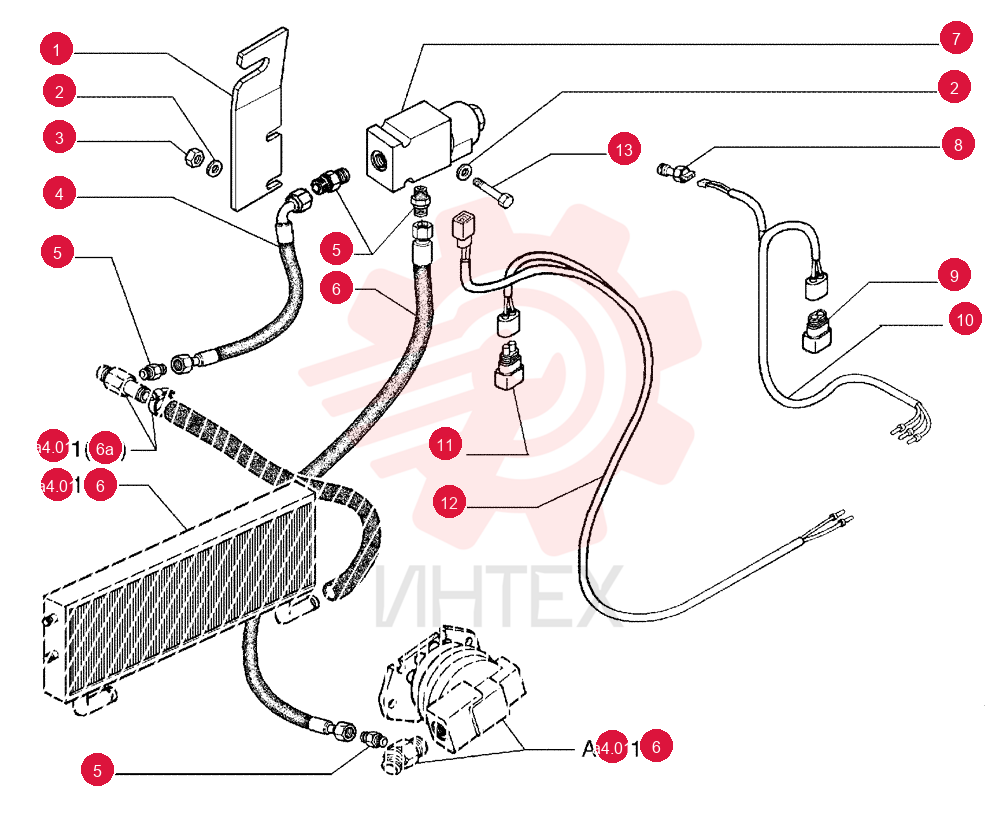

SUPPORT 87364856

SUPPORT 87364856

SUPPORT 87364856

1 87364856

  • 87364856 - SUPPORT

2 70928190

  • 70928190 - WASHER

3 70916590

  • 70916590 - NUT

4 87365140

  • 87365140 - SEAL

5 70919062

  • 70919062 - HYD CONNECTOR

6 87365033

  • 87365033 - HOSE
  • 9.5mm ID x 800mm L
  • SAE 100R2

7 73159101

  • 73159101 - ELECTROMAGNET

8 87365338

  • 87365338 - LARGE HOSE

9 75283949

  • 75283949 - DIODE ELEMENT

10 87368643

  • 87368643 - WIRE HARNESS

11 75322270

  • 75322270 - ELEC CONNECTOR

12 87368651

  • 87368651 - WIRE HARNESS

13 70930238

  • 70930238 - SCREW
