(FD10E) - CRAWLER DOZER
/

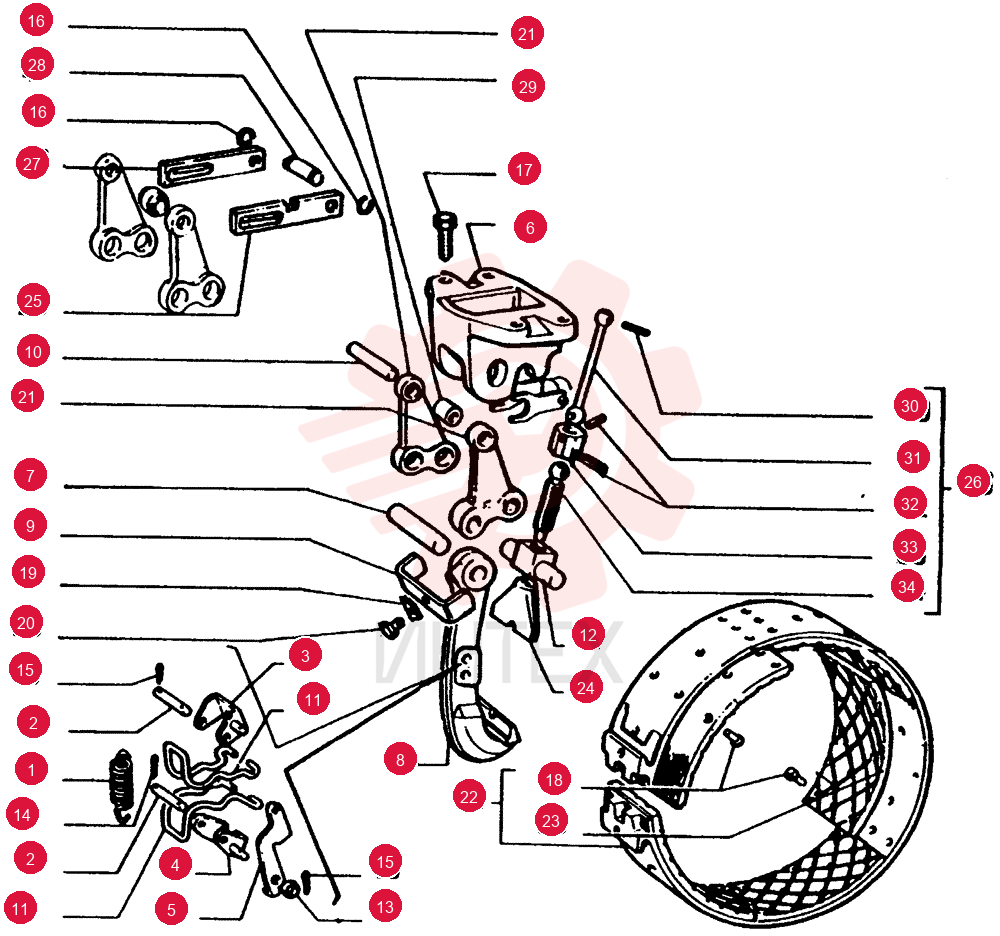

SPRING

SPRING

SPRING

1 599296

  • 599296 - SPRING

2 599299

  • 599299 - PIN
  • 10mm OD x 57mm L

3 599300

  • 599300 - YOKE

4 599301

  • 599301 - YOKE

5 599302

  • 599302 -

6 599303

  • 599303 - SUPPORT

7 599307

  • 599307 - PIN
  • 24mm OD x 96mm L

8 599308

  • 599308 - LEVER

9 599309

  • 599309 - BRACKET

10 4958134

  • 4958134 - PIN

11 4958201

  • 4958201 - RETAINING WIRE

12 4983613

  • 4983613 - PIN
  • 24mm OD x 96mm L

13 14496531

  • 14496531 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

14 10733601

  • 10733601 - COTTER PIN
  • M3.2 x 22

15 10734201

  • 10734201 - COTTER PIN
  • M2 x 12

16 84021874

  • 84021874 - SNAP RING
  • M18
  • Ext

17 11255931

  • 11255931 - BOLT
  • Hex
  • M14 x 1.5 x 40
  • 10.9
  • Full Thd

18 13852540

  • 13852540 - RIVET
  • 6mm OD x 12mm L

19 14198811

  • 14198811 - LOCKING PLATE

20 15970531

  • 15970531 - BOLT
  • Hex
  • M10 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

21 79005063

  • 79005063 - LEVER

22 79106501

  • 79106501 - BRAKE BAND

23 79011420

  • 79011420 - BRAKE LINING

24 79011455

  • 79011455 - ROD-TIP

25 79087717

  • 79087717 - LINK/SHACKLE

26 79099496

  • 79099496 - SCREW

27 79071606

  • 79071606 - LINK/SHACKLE

28 79065799

  • 79065799 - PIN
  • 18mm OD x 46mm L

29 79057000

  • 79057000 - ROLLER

30 10336430

  • 10336430 - PIN

31 79014015

  • 79014015 - PIN

32 14609970

  • 14609970 - ROLL PIN

33 590519

  • 590519 - ADJUSTING SLEEVE

34 76001886

  • 76001886 - ADJUSTMENT SCREW
  • M22 x 1.5 x 73mm
