New Holland Construction
/
(FD10E) - CRAWLER DOZER
/

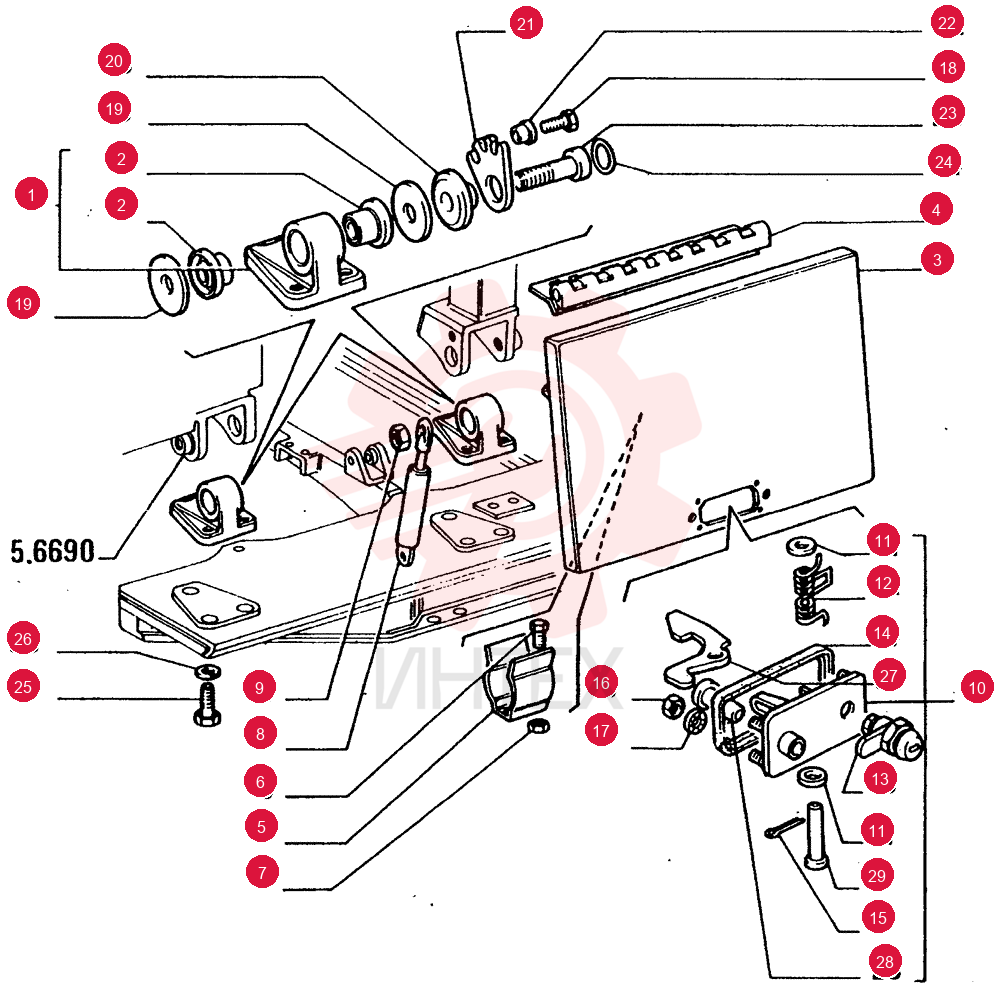

SUPPORT

SUPPORT

SUPPORT

1 79109793

  • 79109793 - SUPPORT

2 79060730

  • 79060730 - BUSHING

3 79102357

  • 79102357 - LID

4 79102358

  • 79102358 - HINGE

5 79106820

  • 79106820 - SPRING

6 10977531

  • 10977531 - BOLT
  • Hex
  • M5 x 10mm
  • Cl 10.9
  • Full Thd

7 15896421

  • 15896421 - NUT
  • M5
  • Cl 10

8 79090916

  • 79090916 - PIN

9 79092992

  • 79092992 - CYLINDER

10 12574221

  • 12574221 - NUT
  • M6 x 1
  • Cl 10

11 79102818

  • 79102818 - LOCK

12 12648301

  • 12648301 - WASHER
  • 10.2mm ID x 17mm OD x 1.5mm Thk

13 79102809

  • 79102809 - SPRING

14 79076867

  • 79076867 - LOCK CYLINDER

15 79102817

  • 79102817 - GASKET

16 10734301

  • 10734301 - COTTER PIN
  • M2 x 18

17 10727321

  • 10727321 - THIN NUT
  • Thin
  • M6 x 1
  • Cl 05
  • LH

18 10615479

  • 10615479 - LOCK WASHER
  • 6.4mm ID x 11mm OD x 0.7mm Thk

19 11106631

  • 11106631 - SCREW
  • Hex
  • M10 x 35mm
  • Cl 10.9
  • Full Thd

20 79085441

  • 79085441 - WASHER
  • 24.6mm ID x 90mm OD x 5mm Thk

21 79084966

  • 79084966 - BUSHING

22 79093828

  • 79093828 - PLATE

23 79093829

  • 79093829 - SPACER

24 79093830

  • 79093830 - SCREW
  • Hex
  • M24 x 2 x 150mm

25 13398976

  • 13398976 - SNAP RING
  • M40
  • Int

26 15988331

  • 15988331 - BOLT
  • Hex
  • M20 x 1.5 x 60mm
  • Cl 10.9
  • Full Thd

27 79005243

  • 79005243 - WASHER
  • 20.4mm ID x 46mm OD x 8mm Thk

28 79093014

  • 79093014 - LEVER

29 79102816

  • 79102816 - PIN
  • 10mm OD x 40mm L
