New Holland Construction
/
(FD10E) - CRAWLER DOZER
/

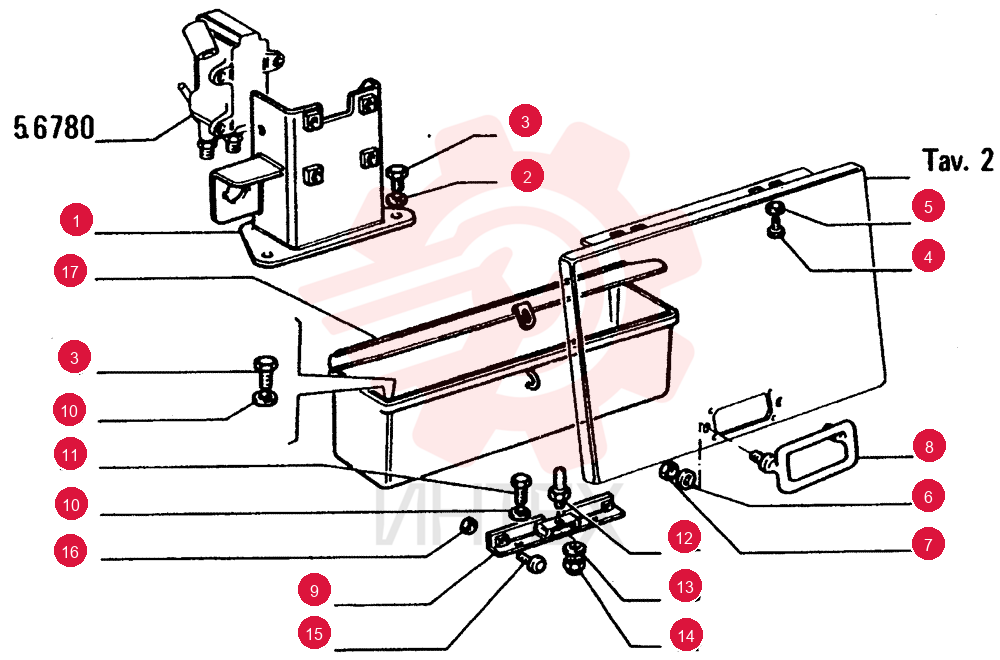

SUPPORT

SUPPORT

SUPPORT

1 79094508

  • 79094508 - SUPPORT

2 12626231

  • 12626231 - WASHER
  • 10.2mm ID x 25mm OD x 3mm Thk

3 11106231

  • 11106231 - BOLT
  • Hex
  • M10 x 1.5 x 25mm
  • Cl 10.9

4 16043231

  • 16043231 - SCREW
  • Hex
  • M8 x 16mm
  • Cl 10.9
  • Full Thd

5 12647031

  • 12647031 - WASHER

6 10615679

  • 10615679 - LOCK WASHER
  • Ext Tooth
  • M8

7 16100821

  • 16100821 - NUT
  • M8
  • Cl 10

8 79093824

  • 79093824 - HANDLE

9 79092993

  • 79092993 - SUPPORT

10 14496631

  • 14496631 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

11 11106031

  • 11106031 - BOLT
  • Hex
  • M10 x 1.5 x 20mm
  • Cl 10.9

12 79092929

  • 79092929 - PIN
  • 12mm OD x 80mm L

13 12648531

  • 12648531 - WASHER
  • 12.2mm ID x 28mm OD x 4mm Thk

14 12577521

  • 12577521 - NUT
  • M12 x 1.75

15 79037282

  • 79037282 - PAD

16 10791021

  • 10791021 - THIN NUT
  • Thin
  • M10 x 1.25
  • Cl 05

17 4989839

  • 4989839 - TOOL BOX
