New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

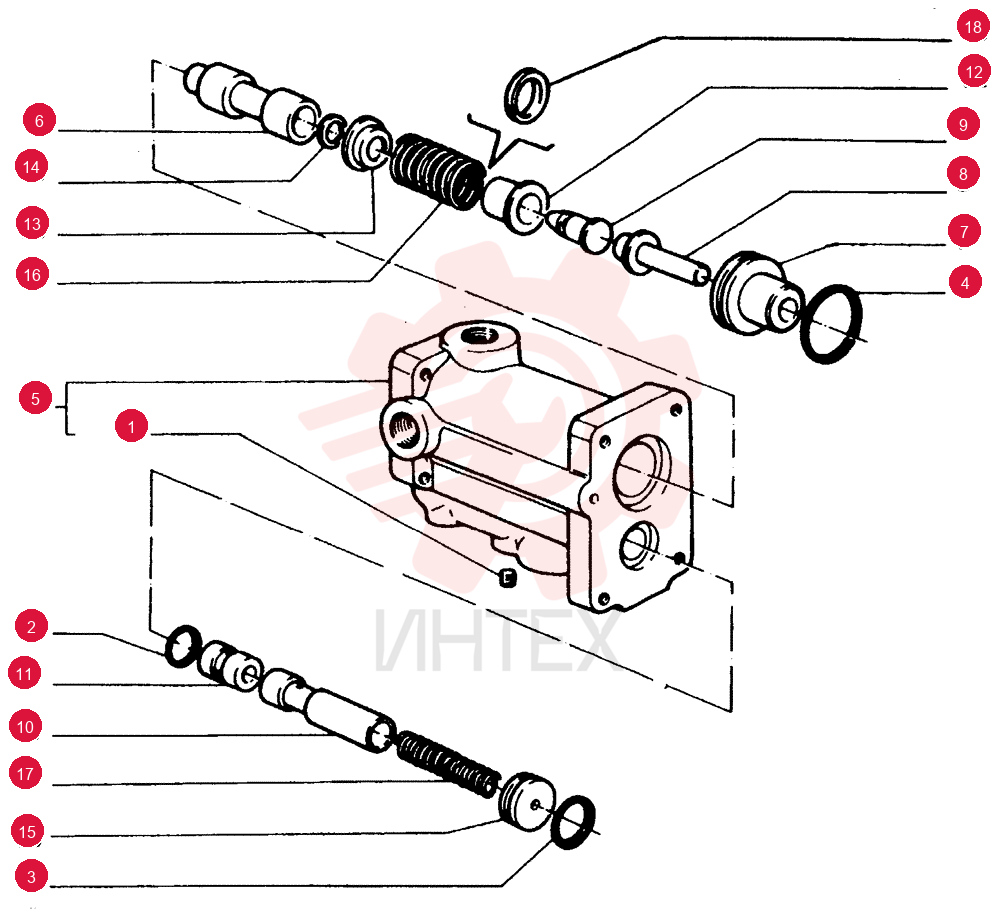

PLUG 79092247

PLUG 79092247

PLUG 79092247

1 79092247

  • 79092247 - PLUG

2 14457480

  • 14457480 - O-RING
  • 0.103" Thk x 0.75" ID
  • -116
  • Cl 5
  • 75 Duro

3 14457580

  • 14457580 - O-RING
  • 0.103" Thk x 0.799" ID
  • -117
  • Cl 5
  • 75 Duro

4 14458480

  • 14458480 - O-RING
  • 0.103" Thk x 1.362" ID
  • -126
  • Cl 5
  • 75 Duro

5 79080950

  • 79080950 - BODY

6 79059615

  • 79059615 - PLUNGER

7 79059618

  • 79059618 - GUIDE

8 79059621

  • 79059621 - PIN
  • 9.99mm OD x 46mm L

9 79059620

  • 79059620 - PUSH ROD

10 79059622

  • 79059622 - PISTON

11 79059626

  • 79059626 - SPACER

12 79059627

  • 79059627 - CUP

13 79059628

  • 79059628 - CUP

14 79059629

  • 79059629 - WASHER

15 79059633

  • 79059633 - WASHER

16 79068644

  • 79068644 - SPRING

17 79068645

  • 79068645 - SPRING

18 79076055

  • 79076055 - SHIM
  • 18.2mm ID x 27mm OD x 2.2mm Thk
