(FR220.2) - WHEEL LOADER (N.A. VERSION) (4/94-)
/

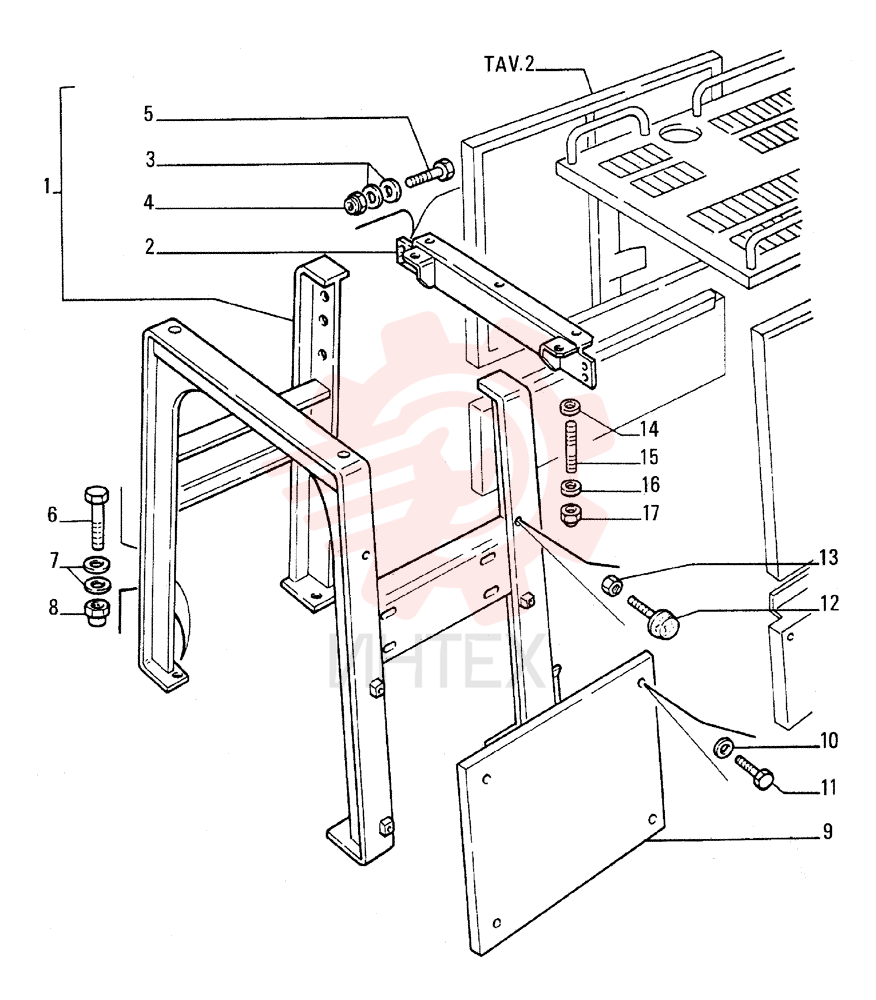

GUARD 76034565

GUARD 76034565

GUARD 76034565

1 76034565

  • 76034565 - GUARD

2 76034610

  • 76034610 - CROSSRAIL

3 12648531

  • 12648531 - WASHER
  • 12.2mm ID x 28mm OD x 4mm Thk

4 12577521

  • 12577521 - NUT
  • M12 x 1.75

5 11113031

  • 11113031 - SCREW
  • Hex
  • M12 x 45mm
  • Cl 10.9
  • Full Thd

6 11113331

  • 11113331 - SCREW
  • Hex
  • M12 x 55mm
  • Cl 10.9

7 79005242

  • 79005242 - WASHER
  • 12.6mm ID x 28mm OD x 7mm Thk

8 12577521

  • 12577521 - NUT
  • M12 x 1.75

9 79110672

  • 79110672 - COVER

10 12645031

  • 12645031 - WASHER
  • 8.45mm ID x 21mm OD x 3mm Thk

11 16043431

  • 16043431 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

12 79037282

  • 79037282 - PAD

13 12164721

  • 12164721 - NUT
  • M10 x 1.25
  • Cl 10

14 79108761

  • 79108761 - SHIM

15 79104670

  • 79104670 - STUD

16 12648531

  • 12648531 - WASHER
  • 12.2mm ID x 28mm OD x 4mm Thk

17 16105021

  • 16105021 - LOCK NUT
  • M12 x 1.25
  • Cl 10
