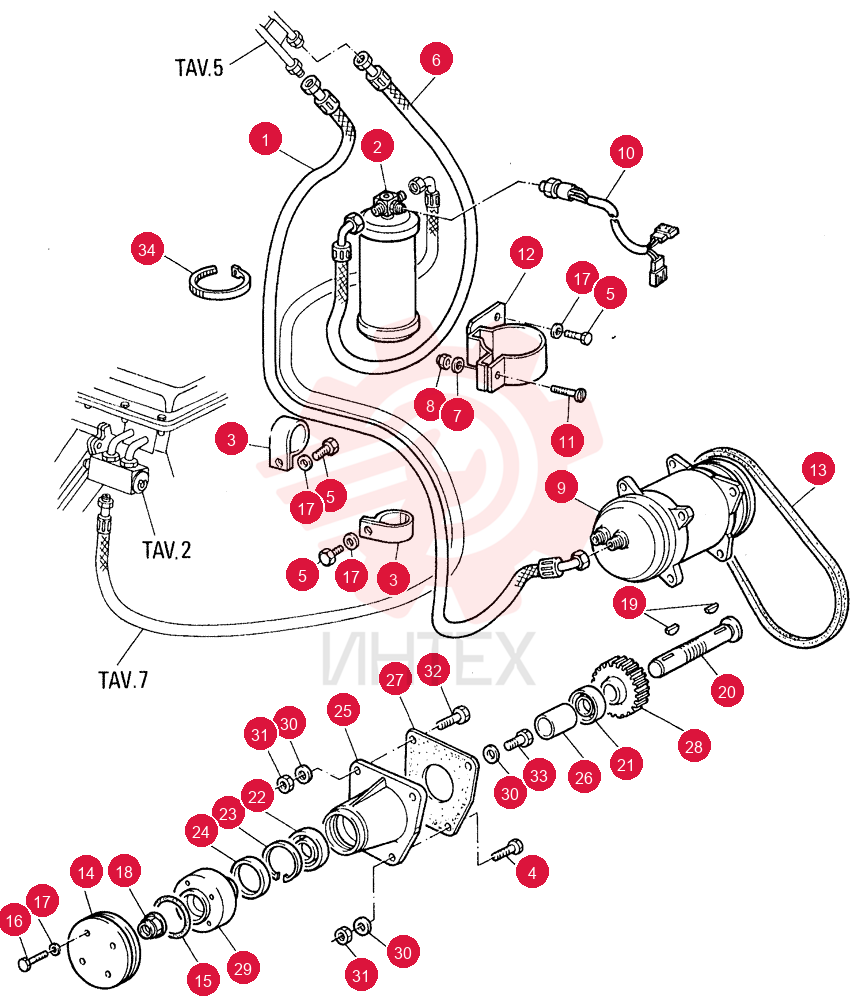

FLEXIBLE HOSE 79115330
1 79115330
- 79115330 - FLEXIBLE HOSE
2 79114749
- 79114749 - AIR FILTER
3 10448890
- 10448890 - CLAMP
- 36mm
- Coat
- P Type
4 15232131
- 15232131 - BOLT
- Hex
- M10 x 1.25 x 85mm
- Cl 10.9
- Full Thd
5 16043131
- 16043131 - BOLT
- Hex
- M8 x 1.25 x 14mm
- Cl 10.9
- Full Thd
6 79115333
- 79115333 - FLEXIBLE HOSE
7 14496431
- 14496431 - WASHER
- 6.4mm ID x 12.5mm OD x 1.6mm Thk
8 12574221
- 12574221 - NUT
- M6 x 1
- Cl 10
9 79094774
- 79094774 - AIR COMPRESSOR
10 79114750
- 79114750 - SWITCH
11 10902831
- 10902831 - SCREW
- Hex
- M6 x 30mm
- Cl 10.9
12 79114759
- 79114759 - BRACKET
13 79115242
- 79115242 - BELT
14 79094442
- 79094442 - PULLEY
15 14459480
- 14459480 - O-RING
- 0.103" Thk x 1.987" ID
- -136
- Cl 5
- 75 Duro
16 16043831
- 16043831 - SCREW
- Hex
- M8 x 1.25 x 30mm
- Cl 10.9
- Full Thd
17 14496531
- 14496531 - WASHER
- 8.4mm ID x 17mm OD x 1.6mm Thk
18 12575121
- 12575121 - NUT
- M20 x 1.5
- Cl 10
19 10205920
- 10205920 - WOODRUFF KEY
- 5mm x 9mm x 21.63mm
20 61585366
- 61585366 - SHAFT
21 20715580
- 20715580 - BALL BEARING
- 25 mm ID x 52 mm OD x 15 mm
22 20996680
- 20996680 - BALL BEARING
- 25mm ID x 62mm OD x 17mm W
23 11061076
- 11061076 - SNAP RING
- M62
- Int
24 5107816
- 5107816 - SEAL
25 79094444
- 79094444 - SUPPORT
26 61585364
- 61585364 - SPACER
27 61319045
- 61319045 - SEAL
- 0.8mm Thk
28 79095651
- 79095651 - GEAR
29 61585368
- 61585368 - HUB
30 14496631
- 14496631 - WASHER
- 10.5mm ID x 21mm OD x 2mm Thk
31 12164721
- 12164721 - NUT
- M10 x 1.25
- Cl 10
32 15232331
- 15232331 - BOLT
- Hex
- M10 x 1.25 x 95mm
- Cl 10.9
- Full Thd
33 15888831
- 15888831 - SCREW
- Hex
- M10 x 1.25 x 70mm
- Cl 10.9
34 4982514
- 4982514 - CABLE TIE
