New Holland Construction
/
(L218) - SKID STEER LOADER - TIER 4B (5/13-)
/

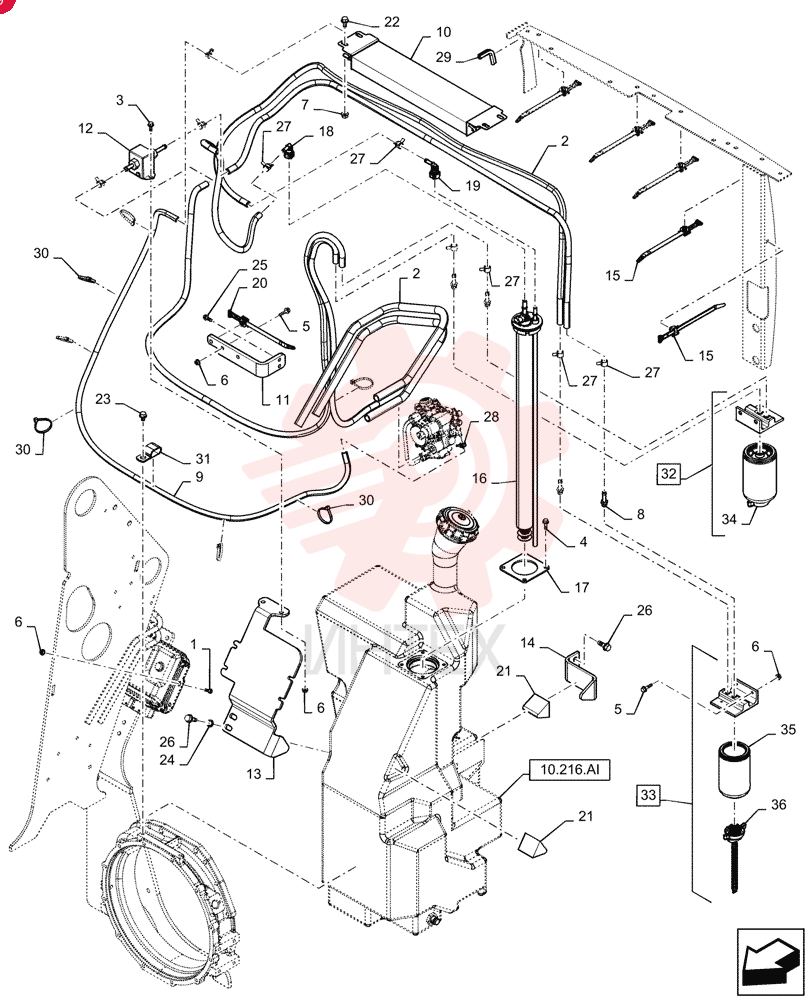

BOLT,M6 x 20mm, Cl 8.8 120100 (1)

BOLT,M6 x 20mm, Cl 8.8 120100 (1)

BOLT,M6 x 20mm, Cl 8.8 120100 (1)

1 120100

  • 120100 - BOLT
  • M6 x 20mm
  • Cl 8.8

2 290323

  • 290323 - HOSE
  • 5/16" ID x 500 FT L
  • SAE 30R7

3 9804255

  • 9804255 - BOLT
  • Hex
  • M6 x 1 x 16mm
  • Full Thd
  • Cl 8.8

4 9804256

  • 9804256 - BOLT
  • Hex
  • M6 x 1 x 20mm
  • Full Thd
  • Cl 8.8

5 9804257

  • 9804257 - FLANGE BOLT
  • Hex
  • M6 x 1.0 x 25mm
  • Cl 8.8
  • Full Thd

6 9804276

  • 9804276 - FLANGE NUT
  • Hex
  • M6 x 1
  • Cl 8

7 9804277

  • 9804277 - FLANGE NUT
  • Hex
  • M8 x 1.25
  • Cl 8

8 9844342

  • 9844342 - FITTING
  • 7/16" - 20 x 8mm Hose x 41.90mm OAL
  • Incl O-Ring

9 47394323

  • 47394323 - FUEL HOSE

10 47402238

  • 47402238 - FUEL COOLER

11 47439923

  • 47439923 - BRACKET

12 47465735

  • 47465735 - FUEL PUMP
  • 12V
  • 1.4A

13 47533375

  • 47533375 - BRACKET

14 47710480

  • 47710480 - BRACKET

15 84259663

  • 84259663 - CABLE TIE
  • 228.6mm L
  • Nylon
  • Black

16 84268571

  • 84268571 - SENDER UNIT

17 84338049

  • 84338049 - MOUNTING PLATE

18 84350217

  • 84350217 - FITTING
  • Fuel
  • 90 Degree Elbow
  • 5/16" Hose Barb x 5/16" Voss

19 84350218

  • 84350218 - FITTING
  • Fuel
  • 90 Degree Elbow
  • 5/16" Hose Barb x 3/8" Voss

20 84379484

  • 84379484 - CABLE TIE
  • 228.6mm L
  • Nylon
  • Black

21 84602030

  • 84602030 - PAD

22 86511841

  • 86511841 - BOLT
  • Flng
  • M8 x 1.25 x 16mm
  • Full Thd
  • Cl 8.8

23 86512520

  • 86512520 - BOLT
  • Hvy Hex
  • M8 x 12mm
  • Cl 8.8
  • Full Thd

24 86624144

  • 86624144 - WASHER
  • 0.41" ID x 0.75" OD x 0.12" Thk

25 86625224

  • 86625224 - SELF-TAP SCREW
  • HWH
  • 1/4" - 20 x 3/4"

26 87030529

  • 87030529 - SELF-TAP SCREW
  • HWH
  • 3/8" - 16 x 7/8"

27 87436932

  • 87436932 - CLAMP
  • 13.9mm - 15.5mm
  • Spring

28 87436933

  • 87436933 - CLAMP
  • 11.7mm - 13.9mm

29 87702286

  • 87702286 - TRIM
  • Bulk
  • 1/8" x 30480mm L

30 L11541

  • L11541 - CABLE TIE
  • 203.2mm L
  • Nylon

31 L71188

  • L71188 - CLAMP
  • 15.75mm ID
  • Coated
  • 13.46mm Bolt Hole
  • P Type

32 84299976

  • 84299976 - FILTER ASSY

33 84559030

  • 84559030 - FUEL FILTER

34 84299977

  • 84299977 - ELEMENT

35 84561653

  • 84561653 - FUEL FILTER

36 84527833

  • 84527833 - SENSOR
