New Holland Construction
/
(L225) - SKID STEER LOADER (4/11-)
/

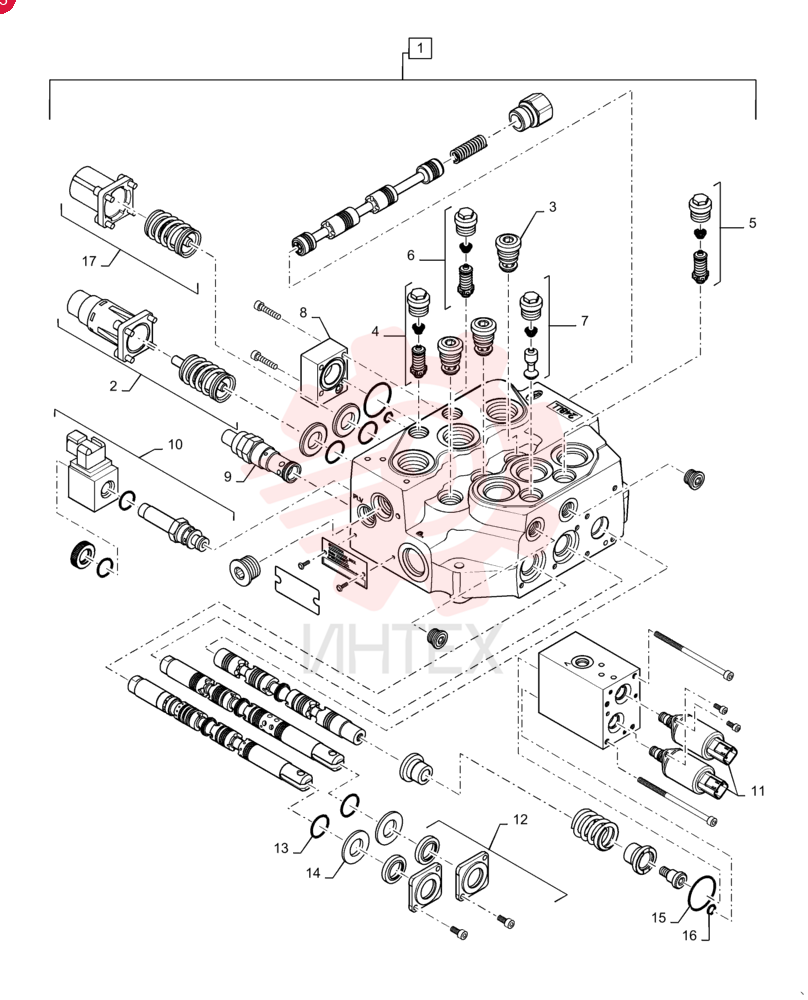

CONTROL VALVE 47408220

CONTROL VALVE 47408220

CONTROL VALVE 47408220

1 47408220

  • 47408220 - CONTROL VALVE

2 84386278

  • 84386278 - KIT

3 84386281

  • 84386281 - CHECK VALVE

4 84386282

  • 84386282 - VALVE PRESSURE RELIE

5 84598798

  • 84598798 - VALVE

6 47458153

  • 47458153 - VALVE

7 84386285

  • 84386285 - HYDRAULIC VALVE

8 84386286

  • 84386286 - CAP

9 84386287

  • 84386287 - VALVE PRESSURE RELIE

10 84386288

  • 84386288 - HYDRAULIC VALVE

11 84386289

  • 84386289 - VALVE
  • PRESSURE CONT

12 84386290

  • 84386290 - KIT

13 84386291

  • 84386291 - O-RING

14 84386292

  • 84386292 - BACK-UP RING

15 84386293

  • 84386293 - O-RING

16 84386294

  • 84386294 - O-RING

17 84386277

  • 84386277 - KIT
