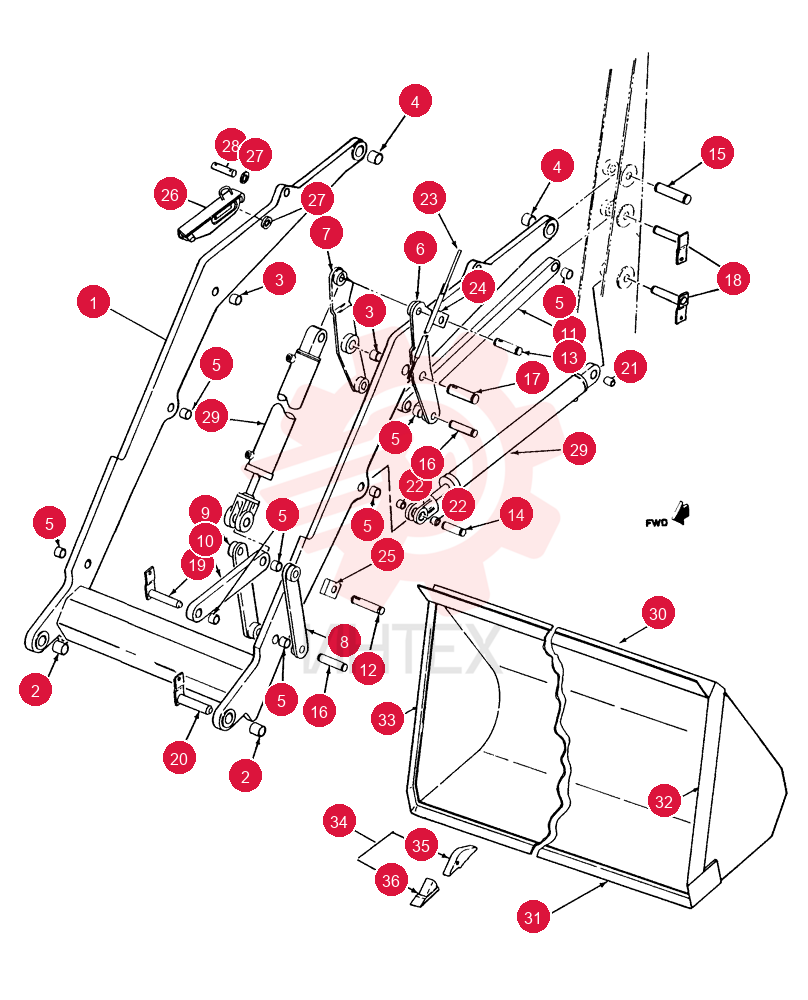

(L600) - NH ARTICULATED LOADER (7/85-7/86)
/
SPARE PART 790648

SPARE PART 790648

SPARE PART 790648

1 790648

  • 790648 - SPARE PART
  • Loader Arm Weld Assy. Includes: Ref. 2 thru 5

2 790655

  • 790655 - DRIVE BUSHING
  • Bushing
  • 1-1/2" O.D. x 1-1/2" Lg.

3 796232

  • 796232 - HYDRAULIC CYLINDER
  • Cutter
  • Side
  • Fertilizer Bucket
  • L.H.

4 790657

  • 790657 - BUSHING
  • 1.25" ID x 1.5" OD x 1"
  • Bushing
  • 1-1/2" O.D. x 1" Lg.

5 790658

  • 790658 - BUSHING
  • 1-1/2" O.D. x 1-1/2" Lg.

6 790656

  • 790656 - DRIVE BUSHING
  • Bushing
  • 1-1/4" O.D. x 1" Lg.

7 790659

  • 790659 - BELLCRANK
  • Weld Assy.
  • L.H.

8 790660

  • 790660 - BELLCRANK
  • Weld Assy.
  • R.H.

9 790665

  • 790665 - SPARE PART
  • Link Weld Assy.
  • Outer

10 790666

  • 790666 - SPARE PART
  • Link Weld Assy.
  • Inner

11 790669

  • 790669 - CONNECTING LINK
  • Link Assy.
  • Cylinder Bucket Includes: (2) Ref. 5

12 790670

  • 790670 - CONNECTING LINK
  • Link Assy.
  • Bellcrank Includes: (2) Ref. 5

13 790686

  • 790686 - PIN
  • Bucket Cylinder Rod
  • Serial Range: End-Link

14 84322

  • 84322 - WOODRUFF KEY
  • #13
  • 3/16" x 1"
  • Key
  • Woodruff # 13
  • 3/16" x 1"

15 197297

  • 197297 - SNAP RING
  • #98
  • Ext
  • Ring
  • Snap
  • #98
  • Ext

16 87367

  • 87367 - WASHER
  • 1.06" ID x 2" OD x 0.13" Thk
  • SAE
  • 1"

17 790684

  • 790684 - PIN
  • Bucket Cylinder Base End
  • L.H.

18 790685

  • 790685 - PIN
  • Bucket Cylinder Base End
  • R.H.

19 84322

  • 84322 - WOODRUFF KEY
  • #13
  • 3/16" x 1"
  • Key
  • Woodruff # 13
  • 3/16" x 1"

20 197297

  • 197297 - SNAP RING
  • #98
  • Ext
  • Ring
  • Snap
  • #98
  • Ext

21 790682

  • 790682 - PIN
  • Loader Arm
  • Lift Cylinder

22 197297

  • 197297 - SNAP RING
  • #98
  • Ext
  • Ring
  • Snap
  • #98
  • Ext

23 790677

  • 790677 - PIN
  • Loader Pivot

24 84322

  • 84322 - WOODRUFF KEY
  • #13
  • 3/16" x 1"
  • Key
  • Woodruff # 13
  • 3/16" x 1"

25 244638

  • 244638 - SNAP RING
  • #125
  • Ext
  • Ring
  • Snap
  • #125
  • Ext

26 856459

  • 856459 - Pin
  • Link to Bellcrank & Loader Arm
  • Replaces 790683

27 84322

  • 84322 - WOODRUFF KEY
  • #13
  • 3/16" x 1"
  • Key
  • Woodruff # 13
  • 3/16" x 1"

28 197297

  • 197297 - SNAP RING
  • #98
  • Ext
  • Ring
  • Snap
  • #98
  • Ext

29 790681

  • 790681 - PIN
  • Bellcrank to Loader Arm

30 84322

  • 84322 - WOODRUFF KEY
  • #13
  • 3/16" x 1"
  • Key
  • Woodruff # 13
  • 3/16" x 1"

31 244638

  • 244638 - SNAP RING
  • #125
  • Ext
  • Ring
  • Snap
  • #125
  • Ext

32 854753

  • 854753 - PIN
  • Link to Tower
  • Replaces 790678

33 30944

  • 30944 - BOLT
  • Hex Flg
  • 1/2" - 13 x 1"
  • Screw
  • Cap
  • Flg Hd
  • USR
  • 1/2"-13 x 1"

34 86512371

  • 86512371 - SERRATED NUT
  • Flg
  • USR
  • 1/2"-13

35 87367

  • 87367 - WASHER
  • 1.06" ID x 2" OD x 0.13" Thk
  • SAE
  • 1"

36 790694

  • 790694 - PIN
  • Weld Assy.
  • Serial Range: Link-Bracket

37 30944

  • 30944 - BOLT
  • Hex Flg
  • 1/2" - 13 x 1"
  • Screw
  • Cap
  • Flg Hd
  • USR
  • 1/2"-13 x 1"

38 86512371

  • 86512371 - SERRATED NUT
  • Flg
  • USR
  • 1/2"-13

39 790697

  • 790697 - PIN
  • Weld Assy.
  • Bucket Pivot

40 30944

  • 30944 - BOLT
  • Hex Flg
  • 1/2" - 13 x 1"
  • Screw
  • Cap
  • Flg Hd
  • USR
  • 1/2"-13 x 1"

41 86512371

  • 86512371 - SERRATED NUT
  • Flg
  • USR
  • 1/2"-13

42 88775

  • 88775 - LUBE NIPPLE
  • 1/4"-28
  • Fitting
  • Lube
  • Straight
  • 1/4"-28

43 790700

  • 790700 - DRIVE BUSHING
  • Bushing
  • 1-1/4" O.D. x 1-3/4" Lg.

44 790701

  • 790701 - DRIVE BUSHING
  • Bushing
  • 1-1/4" O.D. x 11/16" Lg.

45 790691

  • 790691 - ROD
  • Level Indicator

46 280717

  • 280717 - NUT
  • 7/16"-14
  • G5

47 280980

  • 280980 - NUT
  • 7/16"-14
  • GC
  • Nut
  • Lock
  • GC
  • 7/16"-14

48 790688

  • 790688 - GUIDE
  • Assy.
  • Level Indicator

49 790692

  • 790692 - ANCHOR
  • Weld Assy.
  • Level Indicator Rod

50 794854

  • 794854 - LOCK
  • Weld Assy.

51 87367

  • 87367 - WASHER
  • 1.06" ID x 2" OD x 0.13" Thk
  • SAE
  • 1"

52 264054

  • 264054 - PIN
  • 1" x 2-7/8"

53 87673

  • 87673 - COTTER PIN
  • 1/8" x 1 3/4"
  • PIN
  • SPLIT (COTTER)
  • 1/8" x 1-3/4"

54 9609095

  • 9609095 - HYDRAULIC CYLINDER
  • Assy.
  • Bucket & Lift Refer to Separate Componet Breakdown

55 790643

  • 790643 - SPARE PART
  • Blade
  • Welding Required

56 790646

  • 790646 - SPARE PART
  • Cutter
  • Side
  • Utility Bucket
  • L.H.

57 790647

  • 790647 - SPARE PART
  • Cutter
  • Side
  • Utility Bucket
  • R.H.

58 796233

  • 796233 - SPARE PART
  • Cutter
  • Side
  • Fertilizer Bucket
  • R.H.
  • Not Shown

59 218960

  • 218960 - RICE TOOTH
  • Tooth Assy.
  • Component of Optional Bucket Tooth Kit - Includes: Ref. 35 & 36

60 270163

  • 270163 - LUG
  • Point
  • Tooth

61 270163DS

  • 270163DS - BUCKET TOOTH POINT
  • Point
  • Tooth
  • Direct Ship Item
