(LB115CP) - TRACTOR LOADER BACKHOE - 4 WHEEL STEERING (5/98-)
/

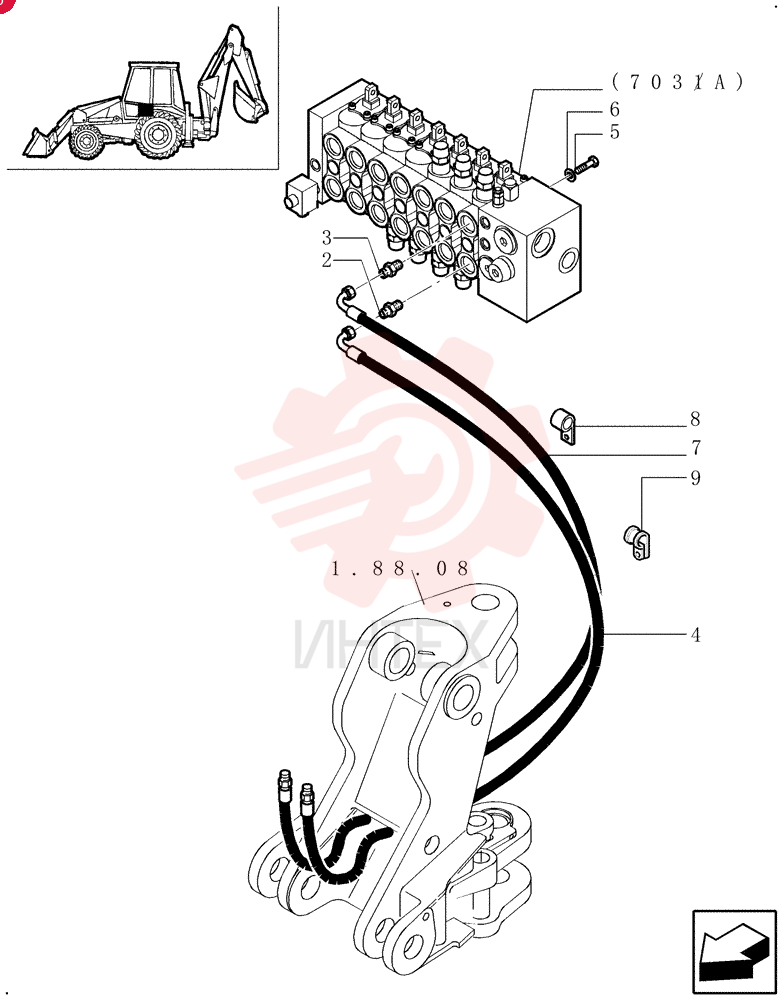

CONTROL VALVE 85806224 (1)

CONTROL VALVE 85806224 (1)

CONTROL VALVE 85806224 (1)

1 85806224

  • 85806224 - CONTROL VALVE

2 85805258

  • 85805258 - HYD CONNECTOR
  • 9/16"-16 ORS x 1 1/16"-12
  • O-Ring

3 390938S36

  • 390938S36 - HYD CONNECTOR
  • 1-1/16-12 ORB x 1-14 ORFS
  • Incl. 167266
  • 9992069 O-Rings

4 85812211

  • 85812211 - FLEXIBLE HOSE
  • 9.5mm ID x 1200mm L

5 11190574

  • 11190574 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

6 85812192

  • 85812192 - FLEXIBLE HOSE

7 85803393

  • 85803393 - CLAMP
  • 18mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type

8 85812029

  • 85812029 - CLAMP
  • 18mm ID

9 11106221

  • 11106221 - SCREW
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd
