(LB75) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

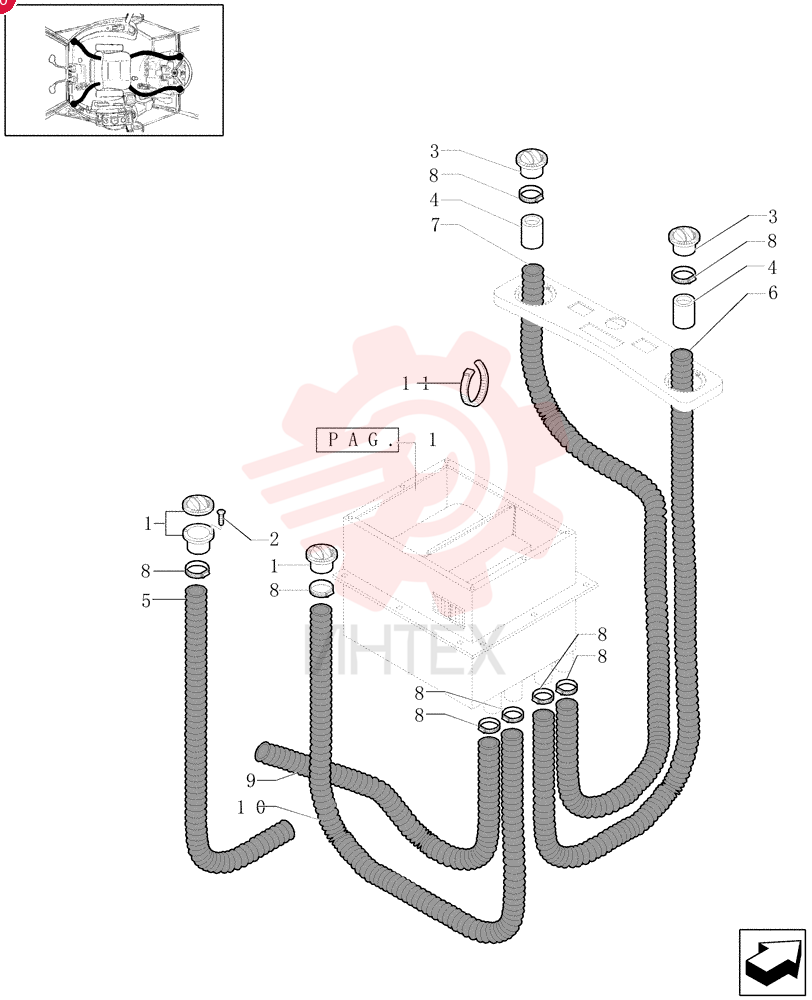

DIFFUSER

DIFFUSER

DIFFUSER

1 70741298

  • 70741298 - DIFFUSER

2 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm
  • 6 x 16

3 85819543

  • 85819543 - DIFFUSER

4 85819592

  • 85819592 - SLEEVE

5 85820905

  • 85820905 - AIR DUCT

6 85820901

  • 85820901 - AIR DUCT
  • Front
  • LH

7 85820902

  • 85820902 - AIR DUCT
  • Front
  • RH

8 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

9 85820904

  • 85820904 - AIR DUCT
  • Rear
  • RH

10 85820903

  • 85820903 - AIR DUCT
  • Rear
  • LH

11 5112712

  • 5112712 - COLLAR
  • M4.8 x 283
