(LB75) - TRACTOR LOADER BACKHOE (6/99-8/00)
/

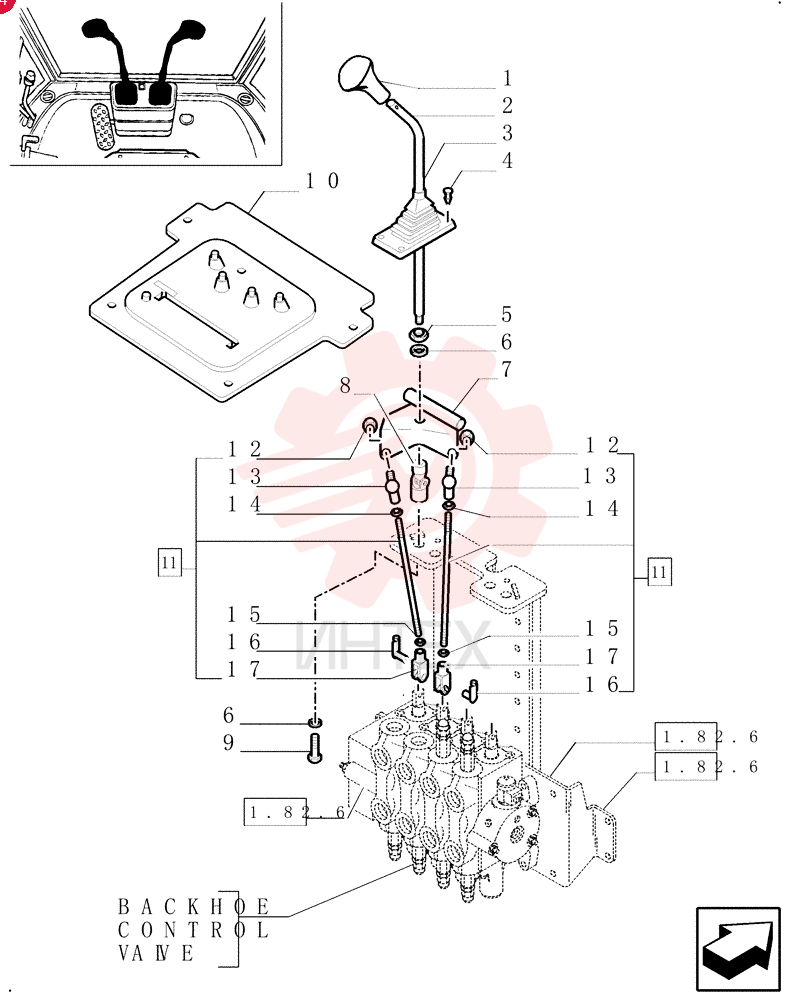

KNOB 85801502 (4)

KNOB 85801502 (4)

KNOB 85801502 (4)

1 85801502

  • 85801502 - KNOB
  • Without Horn Switch

2 85801488

  • 85801488 - LEVER

3 85802843

  • 85802843 - BOOT

4 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

5 16101521

  • 16101521 - NUT
  • M12 x 1.25
  • Cl 10

6 11190774

  • 11190774 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

7 85803124

  • 85803124 - BRACKET

8 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

9 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

10 85804540

  • 85804540 - BOOT
  • w/Cab

11 85801514

  • 85801514 - TIE-ROD

12 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

13 85804375

  • 85804375 - BALL JOINT
  • M8

14 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

15 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

16 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

17 11991971

  • 11991971 - CLEVIS
  • M8
